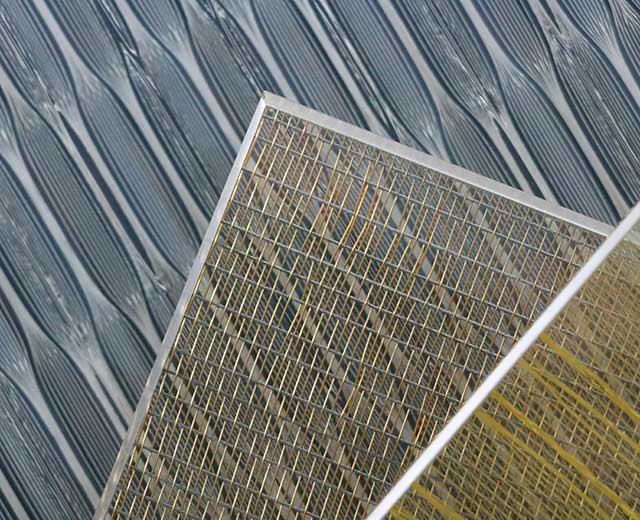

Steps and precautions for laminated glass and wire glass!

2021-06-17

Cut the glass to the required size and shape, and polish the edge (effectively prevent the edge of the glass from cutting the silicone plate); clean the glass (clear the dust, small particles and residual dirt on the glass, use alcohol Wipe the glass) Do not leave dirt, water marks or fingerprints on the surface of the glass; prepare the EVA film and cut it to an appropriate size, and clamp the film between the glass and the center of the glass to join the film.

    Before entering the furnace, put the combined glass into the furnace rack (note: there should be enough gap between the glass and the glass to prevent adhesion). Do not block the suction nozzle of the silicone plate, otherwise it will not be able to drain the silicone plate. The air out of the waste glass (for better exhaust, it is recommended to use a grid) The silicone plate is sealed up and down, turn on the vacuum pump, and drain the air in the silicone plate. Before entering the furnace, be sure to check whether the vacuum bag is leaking, if any Leakage, please repair it as soon as possible (If the silicone plate leaks, it cannot be heated in the furnace).

    For glass heating, push the glass shelf into the laminating furnace, and set the temperature and time according to the glass made. After the glass is heated and kept warm, when the temperature in the box will be below 90 degrees, open the door and push out the glass shelf. When the temperature drops to about 30 degrees, open the silicone plate and take out the glass.
