Introduction:

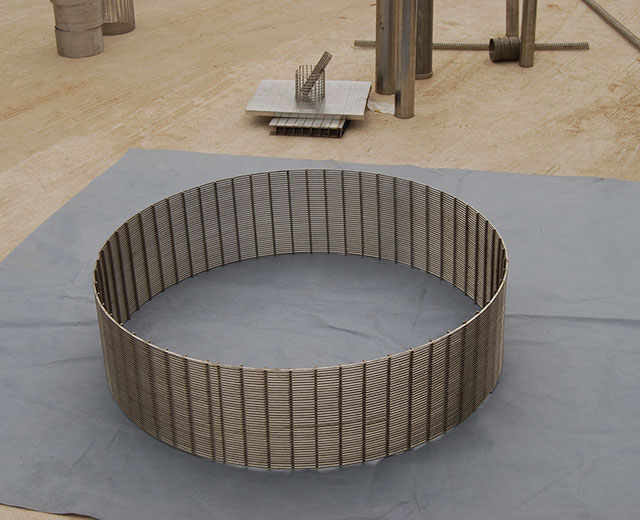

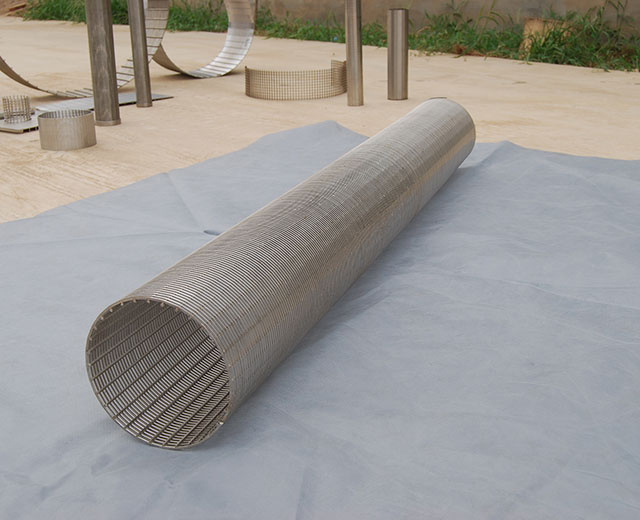

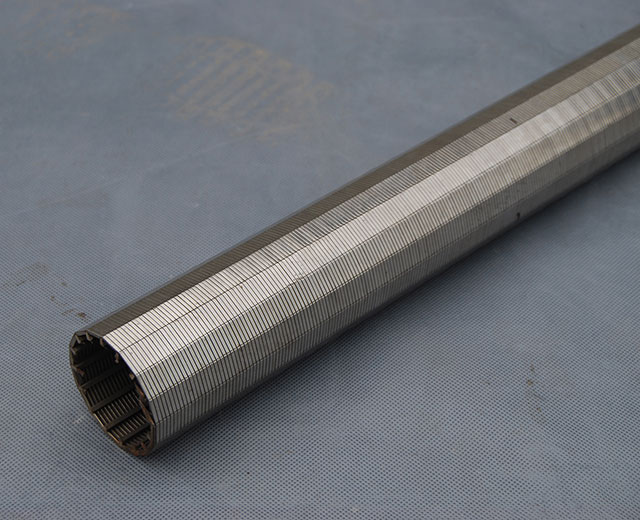

Wedge wire, also called wedge wire screen, is mainly made of stainless steel. And wedge wire
products include wedge wire nozzle, cylinder, support grid and lateral assemblies. The size of the
pores on the one side is smaller than the pores on the other side, so the wedge wire can greatly

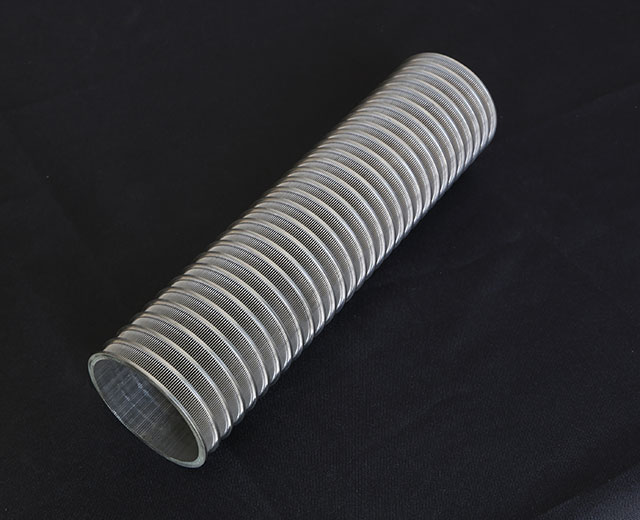

filter something from the small pore side to the large pore side without clogging. We can design the flow direction and shape to meet the application requirements. What’s more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements.

Specification


Material stainless steel 304, 304L, 316, 316L, hastelloy steel, nickle alloy steel or other alloy steel
Wedge wire width:1.50mm, 1.80mm, 2.30mm, 3.00mm, 3.70mm, 3.30mm.
Height: 2.20mm, 2.50mm, 2.70mm, 3.60mm, 4.30mm 4.70mm, 5.60mm, 6.30mm, 7.00mm
Support rod Width: 2.30mm, 3.00mm, 3.30mm, 3.70mm
Height: 2.70mm, 3.60mm, 4.70mm, 5.60mm, 6.30mm
Round wire diameter 2.50 - 5.0mm
Support profile flat, triangle wire, round wire, trapezoid wire.
Slot opening 0.05–35 mm
Tube diameter 10–1500 mm
Tube length 0.3, 0.6, 1, 2, 3, 6m, other lengths available as request
Filter type from outside to inside or inside to outside

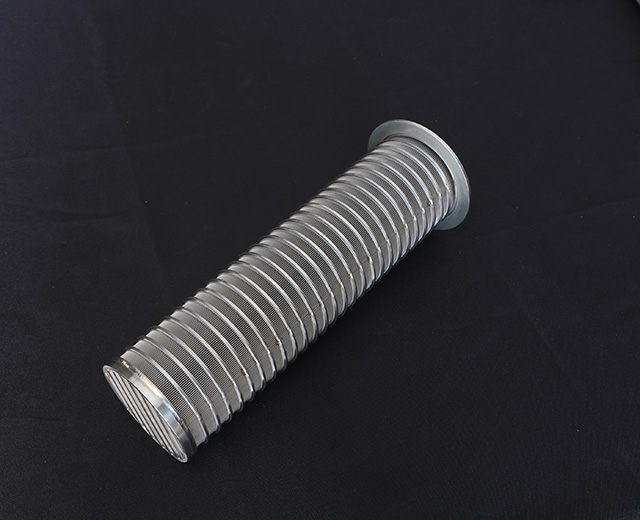

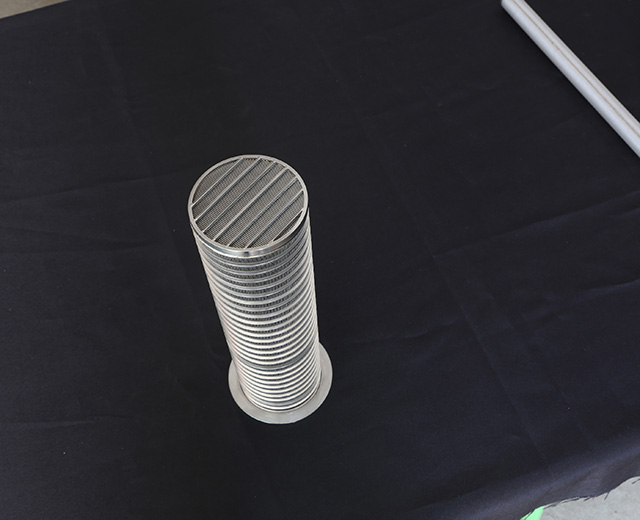

Edge type standard type, end ring type, flange type, threaded type

Feature

1.High quality steel for high strength.
2.High filtering efficiency without clogging.
3.Various types and sizes for choice.
4.Corrosion and rust resistance.
5.Easy installation and replacement.
6.Durable and long service life.



Application

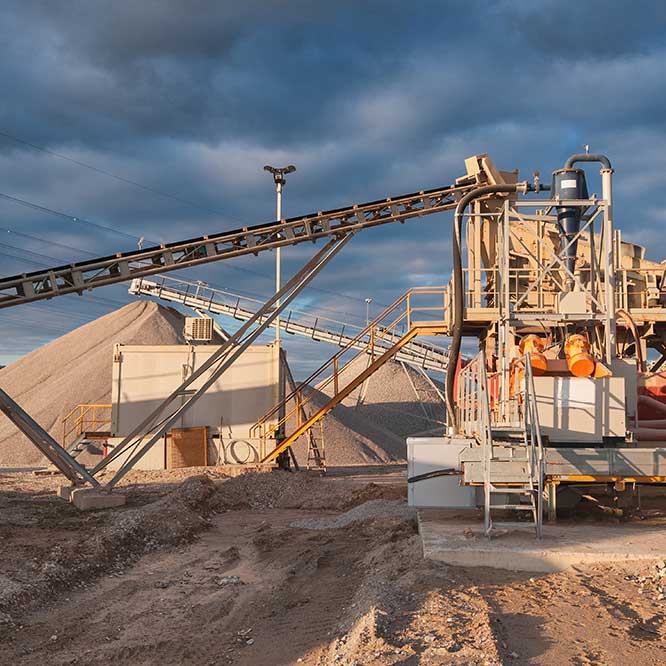

Wedge wire is popular for filtering and screening and widely used in mining, coal, petroleum,fertilizer, grain and environmental protection industries.
