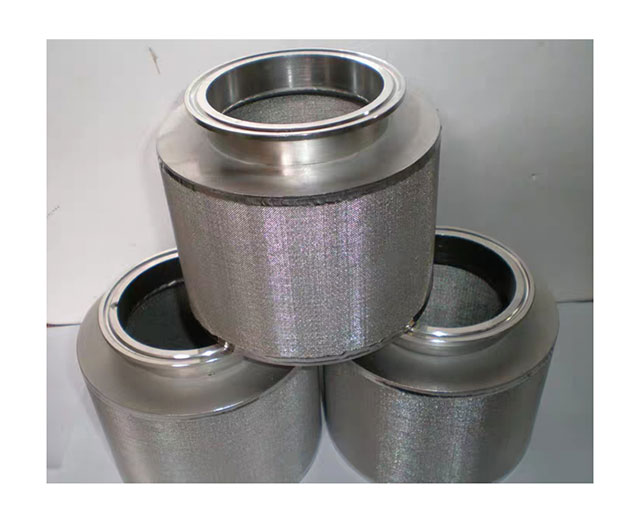

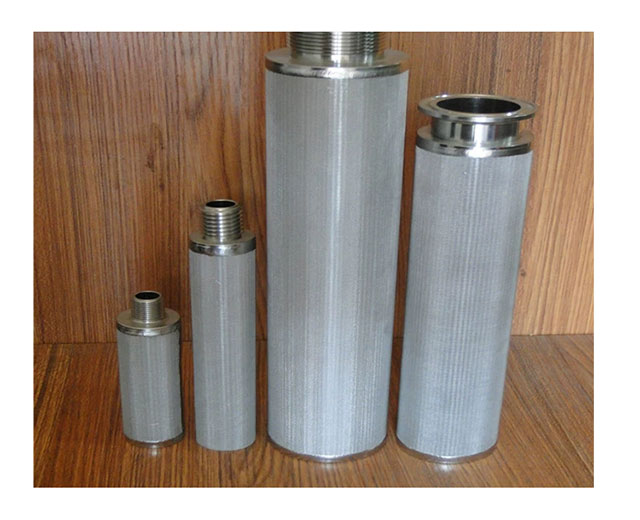

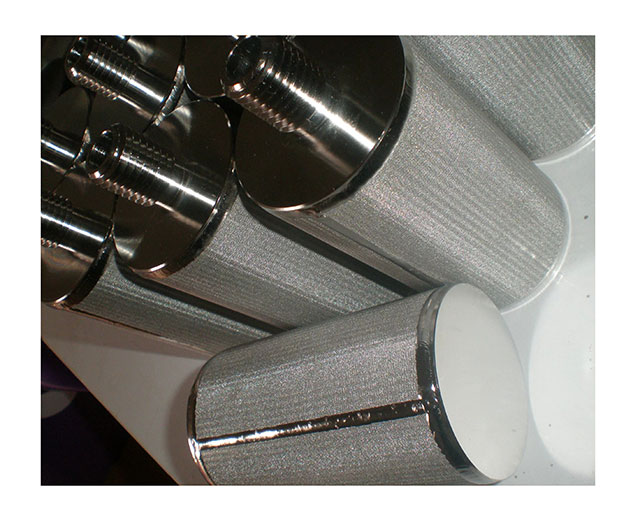

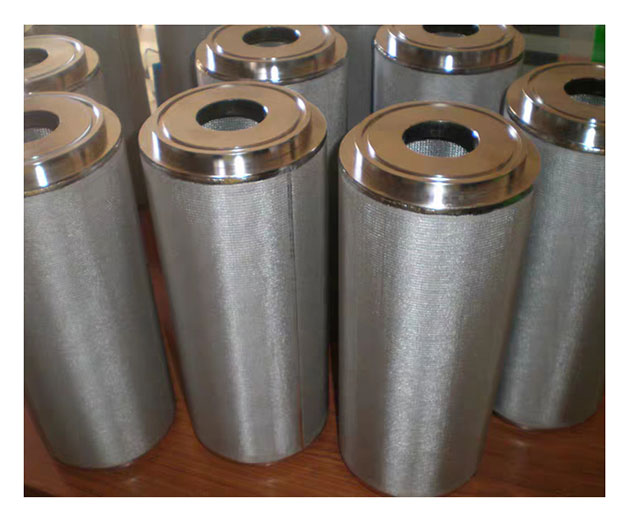

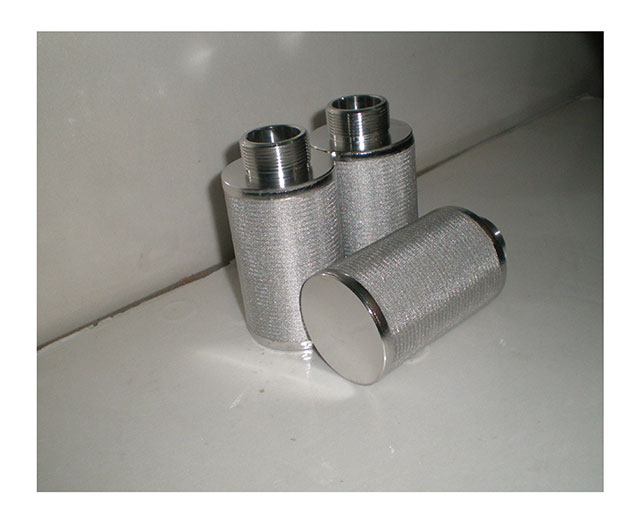

The main technology of sintered mesh filter is that a large number of high-precision welding processes are adopted. The sintered mesh filter is welded after the treatment of rolling circle, the welding joint shall be fixed after making sure the roundness to be welded well, it makes the products looks more nice . Sintered mesh is a kind of porous sintered material, which is made of stainless steel wire mesh stacked together according to different structures, and then made by sintering, pressure rolling and other processes. Due to its surface filtration mechanism and smooth mesh channels, it has excellent washability and regeneration performance and can be used repeatedly for a long time, especially suitable for continuous and automatic operation process, which is incomparable to any filter material.
1.Material: SUS304, SUS316, SUS316L,etc
2.Length:100-1500mm which could be customized.
3.Filter diameter:25mm,32mm,40mm,50mm,65mm,80mm,100mm,150mm,180mm,etc
4.Filter rating:1-300um
5.Operating temperature range:-200℃~600℃
6.Packing:With carton or wooden box
Sintered filter is generally divided into 5 layers, including protection layer, filter layer and reinforcement mesh. This product not only has stable filtration precision, but also has high strength and rigidity. It is suitable for the filtration environment with high pressure resistance and uniform filtration strength. It is a new ideal filtration material.
|
Filter Rating (u) |
Protection Layer |
Protection Layer |
Filter Layer |
Reinforcement Mesh |
Reinforcement Mesh |
Thickness (mm) |
Permeability (L/min/cm2) |
| 1 | 200 | 400x3000 | 200 | 12x64 | 64x12 | 1.7 | 1.81 |
| 2 | 100 | 325x2300 | 100 | 12x64 | 64x12 | 1.7 | 2.35 |
| 5 | 100 | 200x1400 | 100 | 12x64 | 64x12 | 1.7 | 2.42 |
| 10 | 100 | 165x1400 | 100 | 12x64 | 64x12 | 1.7 | 3.00 |
| 15 | 100 | 165x1200 | 100 | 12x64 | 64x12 | 1.7 | 3.41 |
| 20 | 100 | 165x800 | 100 | 12x64 | 64x12 | 1.7 | 4.50 |
| 25 | 100 | 165x600 | 100 | 12x64 | 64x12 | 1.7 | 6.12 |
| 30 | 100 | 400 | 100 | 12x64 | 64x12 | 1.7 | 6.86 |
| 40 | 100 | 325 | 100 | 12x64 | 64x12 | 1.7 | 7.10 |
| 50 | 100 | 250 | 100 | 12x64 | 64x12 | 1.7 | 8.41 |
| 75 | 100 | 200 | 100 | 12x64 | 64x12 | 1.7 | 8.70 |
| 100 | 100 | 150 | 100 | 12x64 | 64x12 | 1.7 | 9.10 |
| 150 | 50+100+50+30+30+100+50 | 2.0 | 25.00 | ||||
| 200 | 40+80+40+20+40+80+40 | 2.0 | 26.00 | ||||
1. Good strength: Because the fourth and fifth layers are used as supports, it has extremely high mechanical strength and pressure-proof strength.
2. Easy to clean: As the surface filter material is used, it has the characteristics for cleaning, especially for backwashing.
3. Easy processing: Suitable for cutting, bending, stamping, stretching, welding and other processing technologies.
4. High temperature resistance: it can withstand high temperature of 600 ℃.
5. Corrosion resistance: SUS304 and SUS316 materials are used, so it has good corrosion resistance.
6. Stability: The filter screen is not easy to deform due to the protection of two layers of wire mesh and the sintered process of diffusion and solid fusion.

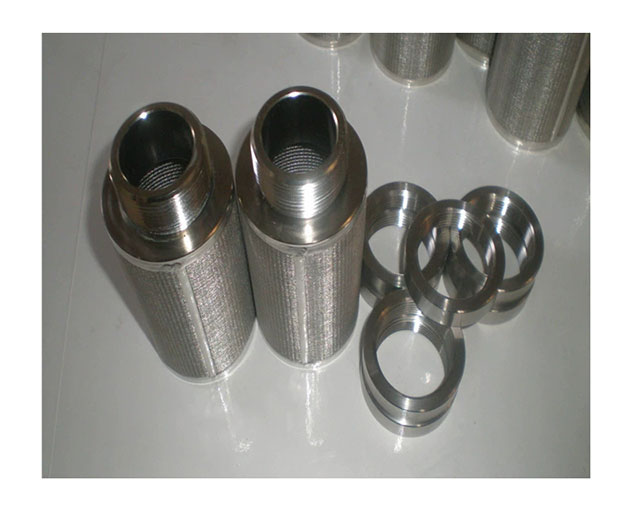

The following common connection methods for Sintered filter, and customized connection method is also acceptable.
1.Standard connection(M20,M30,M36,M42,215,222,226 and others)
2.Thread connection
3.Fast connection
4.Flange connection
5.Flat top connection

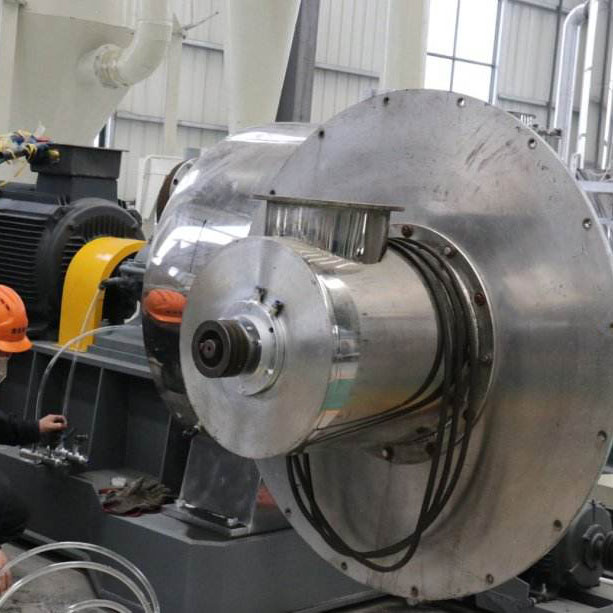

1.High temperature environment
2.Powder industry
3.Gas distribution fluidized bed
4.Pharmaceuticals industry
Yes, we could sell one sample to customer to check the quality.
Yes, pls feel free to show us your connection type, customized design is acceptable for us.
We will use carton box or wooden box packing.
MOQ is one piece for this product.
TT(telegraphic transfer), PayPal, Western Union, L/C, Money Gram.
