Introduction:

Laminated glass metal mesh, also called safety wired glass or Wire mesh glass, is composed of glass and metal mesh materials. Metal meshes from finely woven gauzes to thickly braided weaves and decoratively etched metal foils, offers an innovative range of structural design possibilities. These materials allow the transparency, rigidity and structural qualities when laminated in-between two or more layers of glass. This will give decorative and aesthetic qualities of the metal weaves and meshes.

Specification

Inter-layer wire mesh material stainless steel, copper, brass, aluminum alloy, etc
Glass type common laminated glass, tempered laminated glass, coated laminated glass, low-e laminated glass, silkscreen laminated glass, bulletproof laminated glass, fireproof laminated glass, etc.
Wire mesh color Silver, golden, red, purple, blue, green, bronze, gray, etc.
Thickness 3 + 0.38 + 3 mm, 3 + 0.76 + 3 mm, 4 + 0.38 + 4 mm, 4 + 0.76 + 4 mm, 5 + 0.38 + 5 mm, 5 + 0.76 + 5 mm, 6 + 0.38 + 6 mm, 6 + 0.76 + 6 mm, 8 + 0.76 + 8 mm, 10 + 0.76 + 10 mm, etc.
Popular size 300 × 300 mm, 1220 × 1830 mm, 1500 × 2000 mm, 1530 × 2520 mm, 1830 × 2440 mm, 2000 × 2500 mm, 2140 × 3300 mm, 2250 × 3600 mm, 2800 × 7000 mm, 3000 × 8000 mm, also can be customized.



Feature

  • Safety
  • Even the glass is broken, metal mesh can still keep glass fragments stick together
  • High strength
  • laminated glass metal mesh is made of high strength glass, can stops illicit intruders in their tracks.
  • Attractive
  • Metal mesh offers an innovative range of structural design possibilities.
  • Sound insulation
  • Glass can block sound waves, keeping quiet and comfortable surroundings.


Application

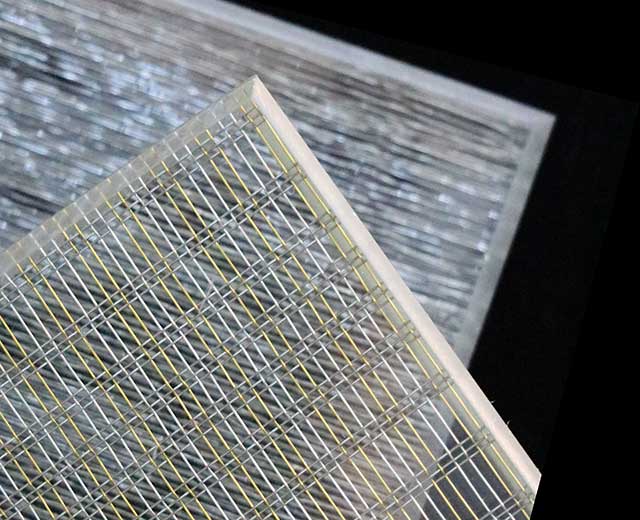

 Laminated glass metal mesh

for Wire glass

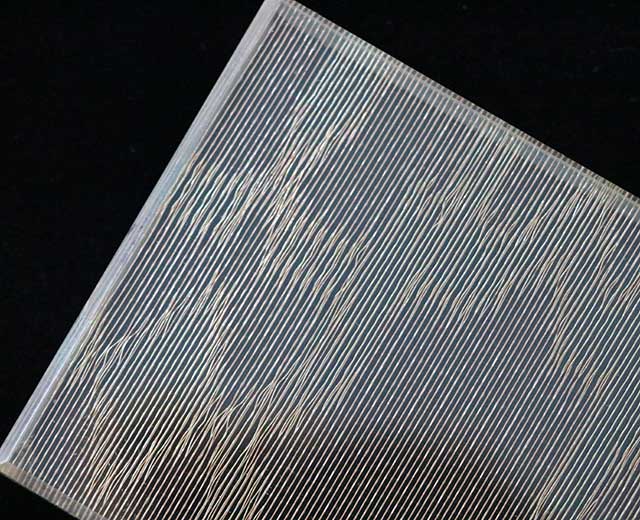

 Laminated glass metal mesh

for Wire glass

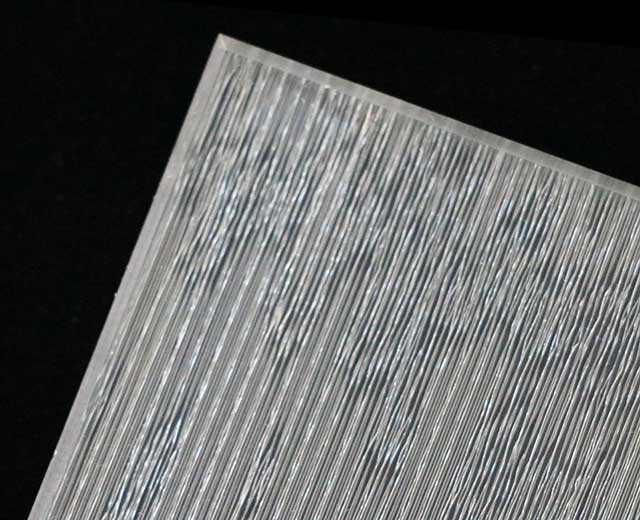

 Laminated glass metal mesh

for Wire glass

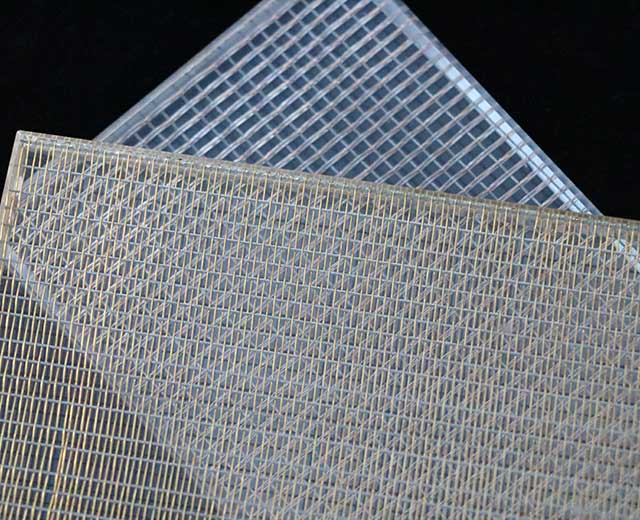

 Laminated glass metal mesh

for Wire glass

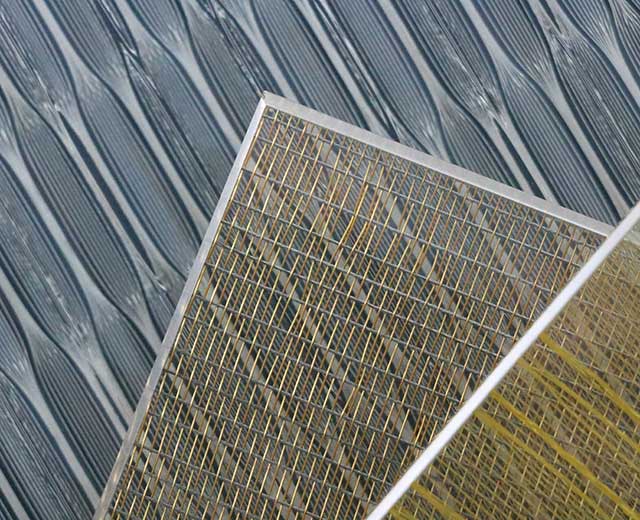

Laminated glass metal mesh

for Wire glass
