Introduction:

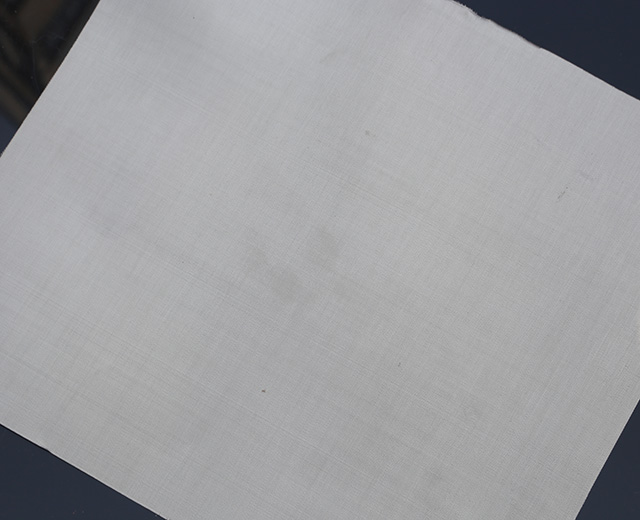

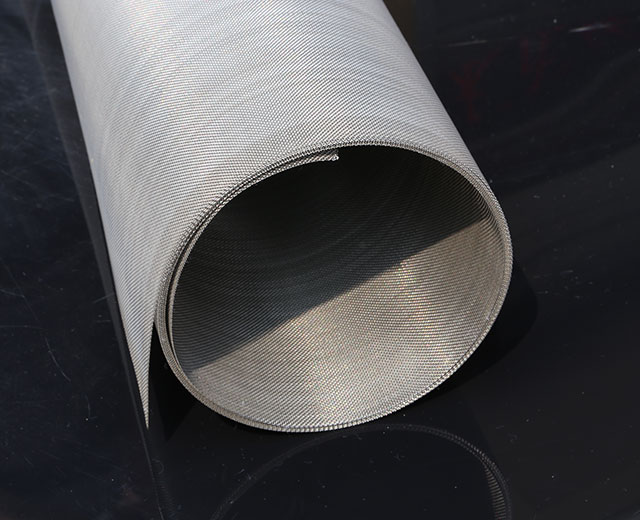

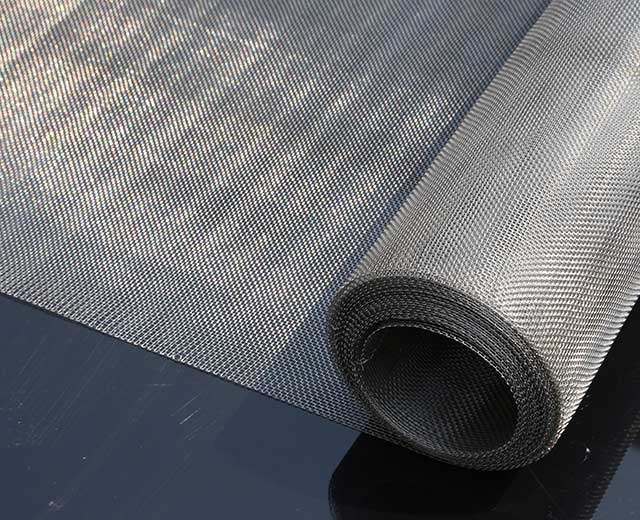

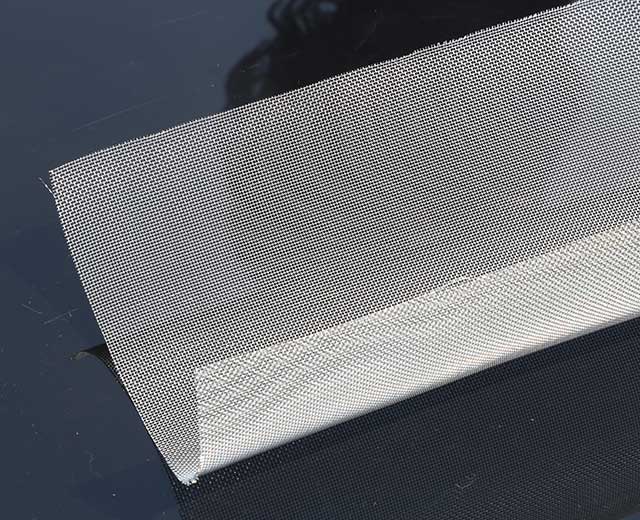

Pure silver wire mesh is a type of non-ferrous metal mesh. Pure silver wires with a purity of 99.99% woven into plain or twill weave wire mesh. Pure silver wire mesh has unique electric and thermal conductivity, plus good chemical stability and ductility, it is widely used for electrode mesh or battery collector mesh in electronic, electric power industry. Silver wire mesh is also a good choice for high precision filtration equipment.

Specification


Material 99.99% pure silver wire

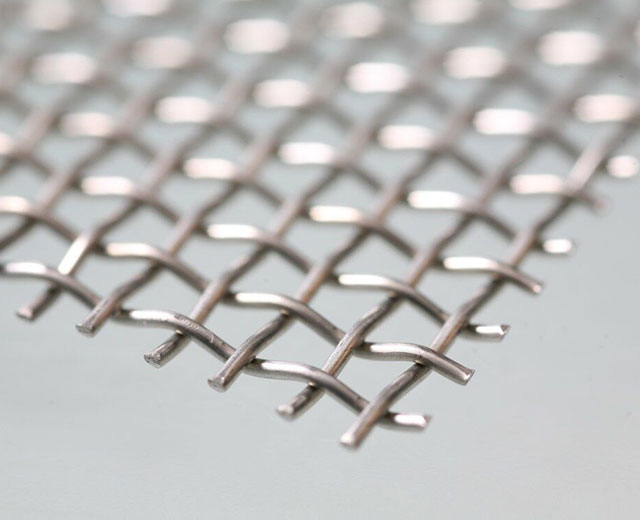

Weave type plain weave, twilled weave
Wire diameter 0.05-2.3mm
Mesh count 10mesh - 250 mesh
Mesh width Could Customized from 100mm to 2000mm
Mesh length 15-30m/roll , customized acceptable
Characters Good electric conductivity , thermal conductivity and ductility

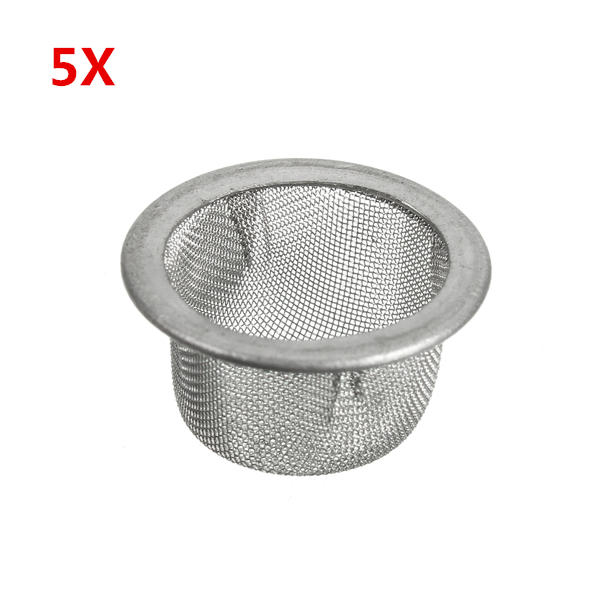

Applications Battery Collector, Battery Skeleton, Electrode, Experimental Materials, Equipment, High-precision filtration equipment
Customized Acceptable as per your request

Mesh Wire diameter Aperture Opening rate
inch mm inch mm area%
20 mesh 0.014 0.35 0.036 0.91 51.8
20 mesh 0.009 0.23 0.041 1.04 67.2
24 mesh 0.014 0.35 0.028 0.71 44.2
28 mesh 0.01 0.25 0.026 0.66 51.8
30 mesh 0.012 0.305 0.0213 0.54 40.8
40 mesh 0.01 0.254 0.015 0.38 36
60 mesh 0.0075 0.191 0.0092 0.23 30.5
80 mesh 0.0055 0.14 0.007 0.18 31.4
100 mesh 0.004 0.102 0.006 0.15 36
120 mesh 0.0037 0.094 0.0064 0.1168 30.7
150 mesh 0.0026 0.066 0.0041 0.1041 37.4
180 mesh 0.0023 0.0584 0.0033 0.0838 34.7
200 mesh 0.0021 0.0533 0.0029 0.0737 33.6
250 mesh 0.0016 0.0406 0.0024 0.061 36

Feature

1.99.99% purity material.
2.Excellent electric conductivity.
3.High thermal conductivity.
4.Good heat transfer performance.
5.Good chemical stability & ductility.
6.High recovery value.



Application
