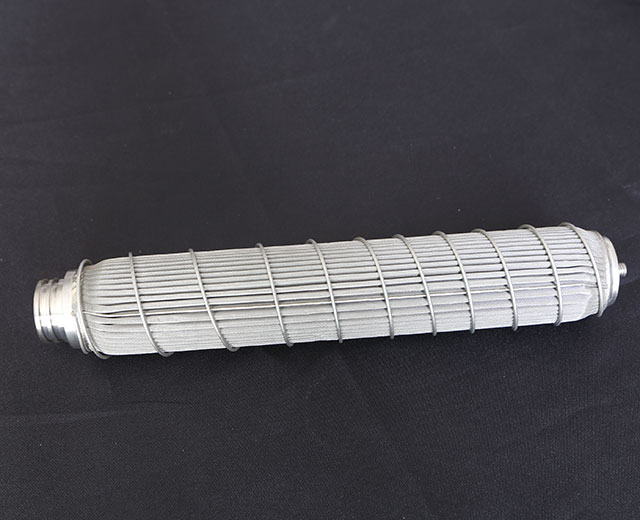

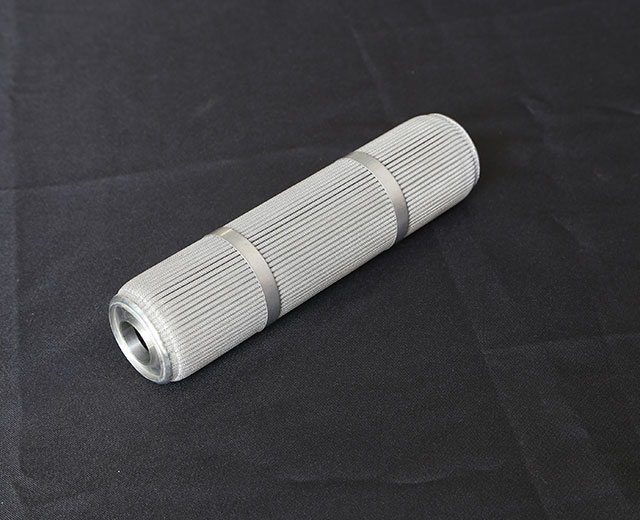

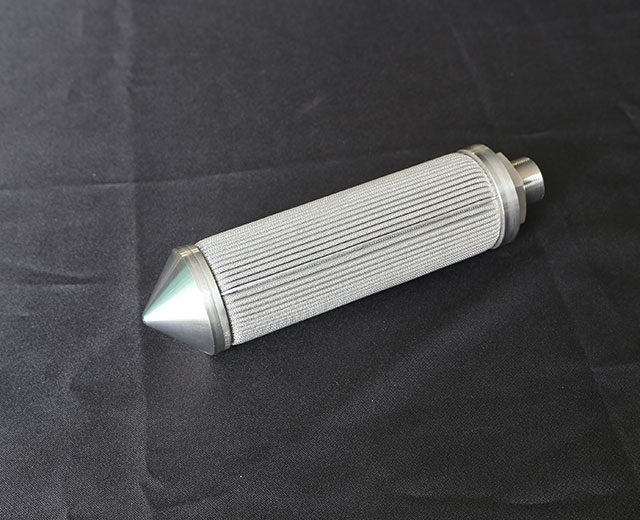

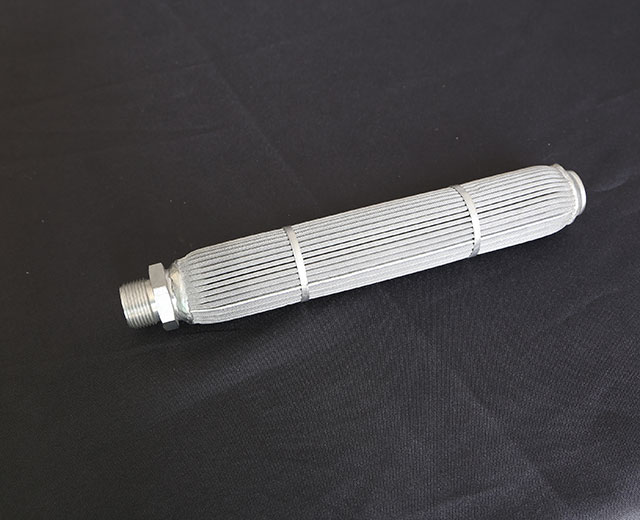

Pleated filter also named stainless steel pleated filter made of pleated stainless steel sintered fiber web and stainless steel weaving wire cloth. Pleated filter enjoy the characteristics of long life span, easy cleaning, low cost, etc. It is widely used in chemical fiber, petroleum, chemical industry, electric powder filtration.
| Material | ss304 wire mesh,ss316 wire mesh,ss316l wire mesh,brass wire mesh, hastelloy sintered wire mesh, nickel wire mesh, monel wire mesh, FrCrAl wire mesh etc |
| Filter precision | 1 - 2000μm |
| Working temperature | -50°C -800°C |
| Working pressure | 30Mpa |
| Filtration area | 0.01-0.2m2 |
| Rated flow | 80-200L/min |
| length | 5", 10", 20", 30", 40" or as needed. |
| Diameter | 60 mm, 64 mm, 69 mm, 83 mm, 131 mm, or as needed. |
| Inner diameter | 28–40 mm, or as needed. |
| Main filter media | stainless steel sintered fiber web and stainless steel wire woven cloth. |
| Installing form | standard (using o-ring to seal), thread, tie rod, flange, fast interface |
1.Large filtration area and particle holding capacity;
2.High porosity rate, good air permeability and filtration ability;
3.Suitable for viscous liquid filtration, recycled using after cleaning;
4.Workable in High temperature or and high pressure.
Pharmaceuticals, fluidized beds, liquid and gas filtration, chemical processing, chemical fiber filtration, food and beverage, oil and gas filtration, polyester and water treatment industries.
A: We are factory, and professional on wedge wire and filters production.
A: Each with plastic bubble film + carton or wooden box.
A:TT (telegraphic transfer), PayPal, Western Union, L/C, etc.
A: According to your quantity,we use DHL.FEDEX/ UPS or sea shipping, by express shipping usually take 5-7days to arrive .about 30 days for sea shipping.
A:Yes. We have professional R&D department including more than 15 engineers, and we can design the more suitable filters for you.
