Inconel wire mesh

Introduction:

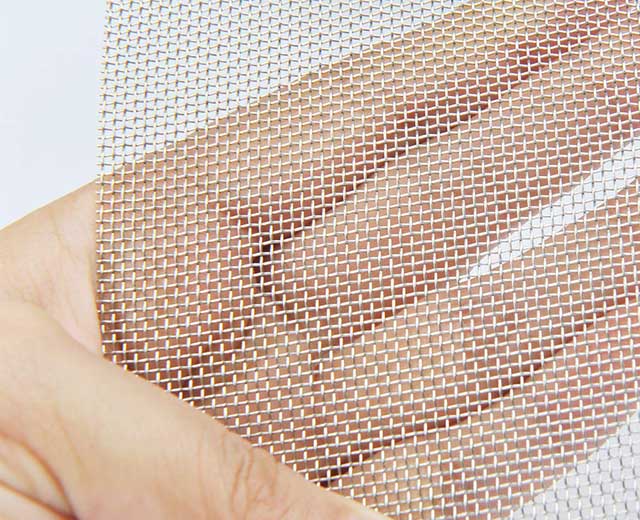

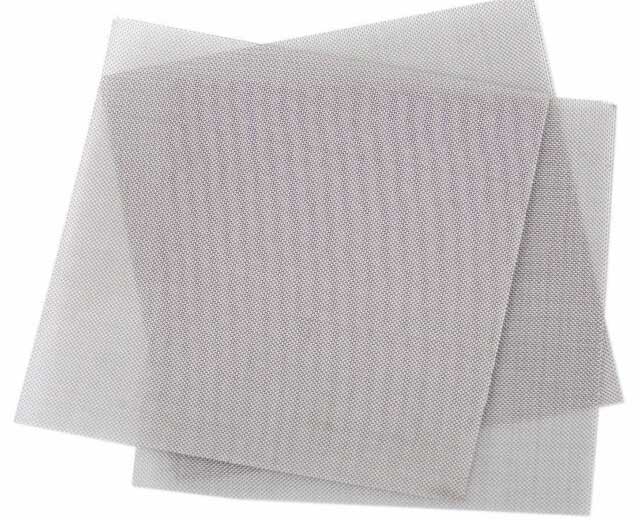

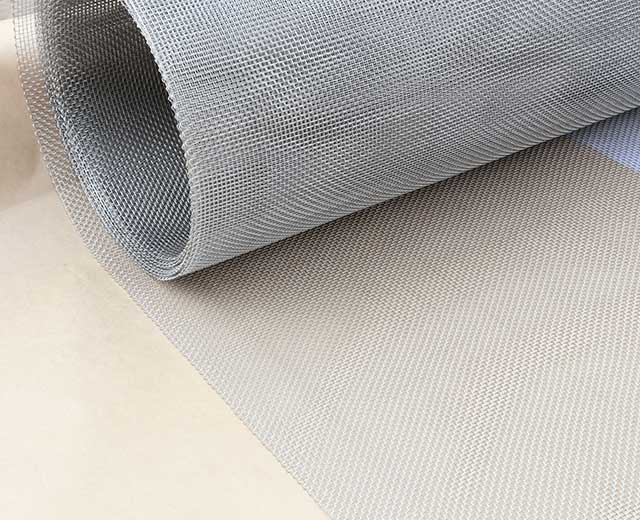

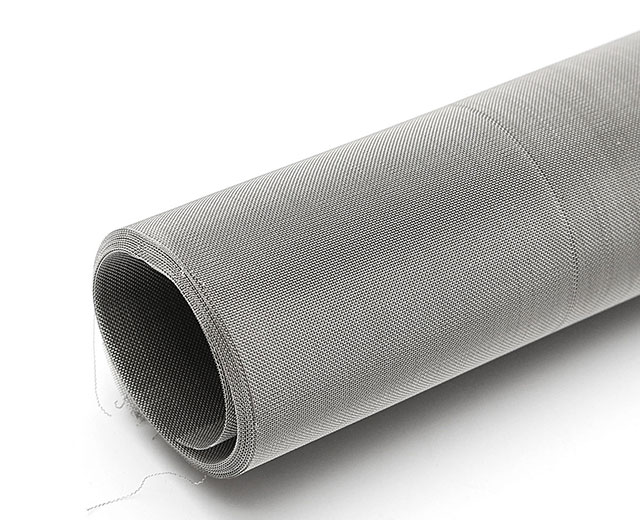

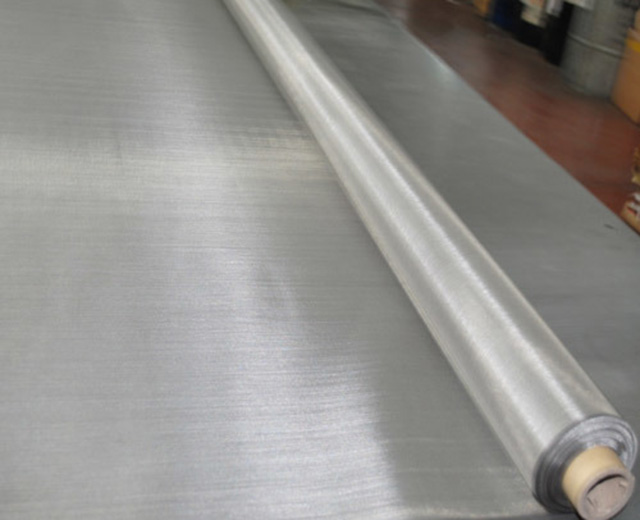

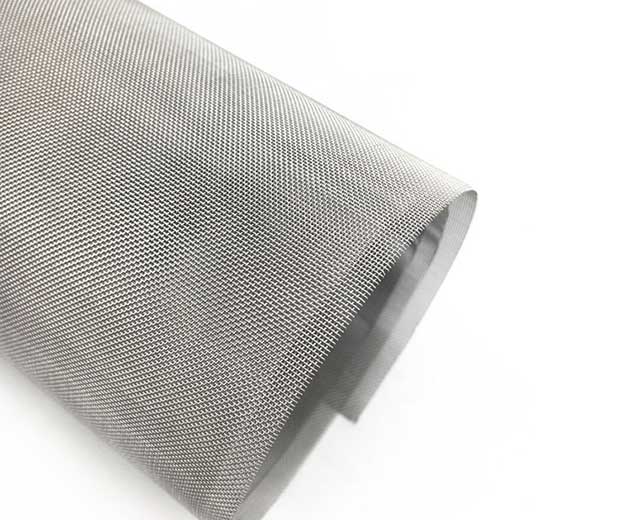

Inconel woven wire mesh is a type of woven wire mesh, which is made of inconel wires. The inconel is the alloy of nickel, chrome and iron. According to the chemical composition, the inconel can be divided into inconel 600, inconel 601, inconel 625, inconel 718 and inconel X750.

Without magnetism, inconel woven wire mesh can be used in a temperature range from below zero to 1093 degree. Inconel woven wire mesh has excellent corrosion resistance, and its oxidation resistance performance is better than the nickel woven wire mesh. It is widely used in the petrochemical, aerospace industry and other fields.

Standard	C	Cr	Cu	Fe	Mn	Ni	S	Si
Inconel 600	0.15	14 - 17	0.5	6 - 10	1	72	0.015	0.5
Standard	C	Cr	Cu	Fe	Mn	Ni	S	Si	Al
Inconel 601	0.1	21 - 25	1	Rem.	1	58 - 63	0.015	0.5	1.0 - 1.7
Standard	C	Cr	Cu	Fe	Mn	Ni	S	Si	Al
Inconel 601	0.1	21 - 25	1	Rem.	1	58 - 63	0.015	0.5	1.0 - 1.7
Standard	C	Cr	Fe	Mn	Ni	S	Si	Al	Cb	Mo	P	Ti
Inconel 625	0.1	20 - 23	5	0.5	Rem.	0.15	0.5	0.4	3.15 - 4.15	8 - 10	0.015	0.4
Standard	C	Cr	Cu	Fe	Mn	Ni	S	Si	Al	Cb	Mo	P	Ti	B	C	Co
Inconel 718	0.08	17 - 21	0.3	Rem.	0.035	50 - 55	0.015	0.35	0.2 - 0.8	4.75 - 5.50	2.8 - 3.3	0.015	0.65 - 1.15	0.006	0.08	1
Standard	C	Cr	Cu	Fe	Mn	Ni	S	Si	Al	Cb	Ti
Inconel X750	0.08	14 - 17	0.5	5 - 9	1	70	0.01	0.5	0.4 - 1	0.7 - 1.2	2.0 - 2.6

Specification

Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
4 × 4	0.12	0.13	27
4 × 4	0.08	0.17	46.2
4 × 4	0.063	0.187	56
5 × 5	0.04	0.16	64
6 × 6	0.041	0.0126	57.2
8 ×8	0.047	0.078	38.9
8 × 8	0.041	0.084	45.2
8 × 8	0.03	0.095	57.8
8 × 8	0.028	0.097	60.2
10 × 10	0.0225	0.075	56.3
10 × 10	0.015	0.085	72.3
12 × 12	0.041	0.042	25.4
12 × 12	0.025	0.058	48.4
16 × 16	0.036	0.0275	19.4
16 × 16	0.028	0.035	30.5
16 × 16	0.025	0.038	36
16 × 16	0.023	0.04	39.9
16 × 16	0.018	0.045	50.7
18 × 18	0.028	0.028	24.7
20 × 20	0.016	0.034	46.2
22 × 22	0.015	0.031	45
24 × 24	0.014	0.028	44.2
24 × 24	0.012	0.03	50.8
28 × 28	0.013	0.023	40.4
30 × 30	0.015	0.018	30.1
30 × 30	0.01	0.0233	48.9
35 × 35	0.0055	0.0236	68.1
40 × 40	0.01	0.015	36
50 × 50	0.009	0.011	30.2
60 × 60	0.0075	0.0092	30.5
80 × 80	0.0055	0.007	31.4
100 × 100	0.004	0.006	36
100 × 100	0.0045	0.0055	30.2
120 × 120	0.0038	0.0046	30.7
120 × 120	0.002	0.0063	57.8
200 × 200	0.0021	0.0029	33.6
200 × 200	0.002	0.003	36

Feature

1.Non-magnetic.

2.High temperature resistance.

3.Good cold-formed function.

4.Good weld ability.

5.Excellent corrosion resistance.

6.Oxidation resistance.

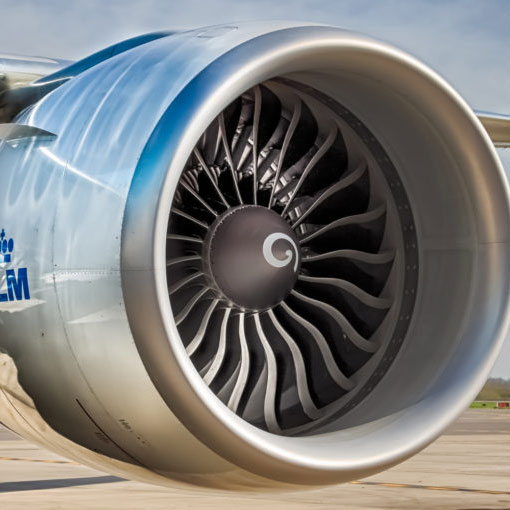

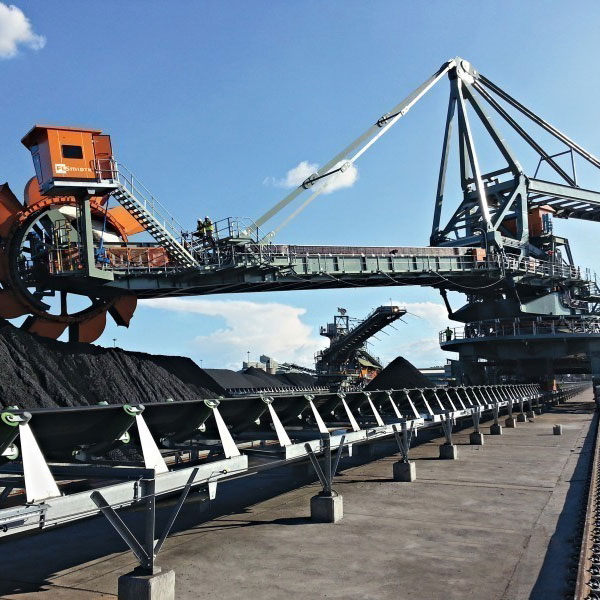

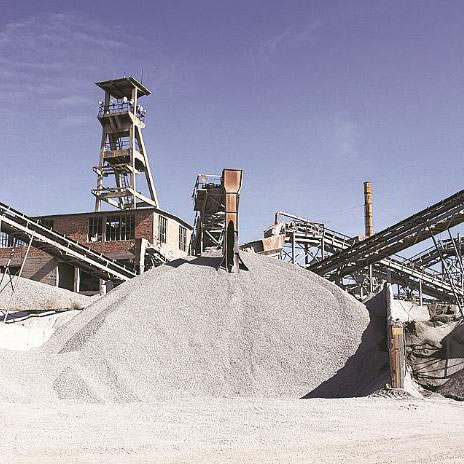

Application

FAQ

Q: How is wire mesh priced?
- A: Pricing for wire mesh is based upon quantity required. Generally speaking, the larger the quantity you request, the better pricing per unit you will receive. The most common way pricing is provided is by the square foot. Abbreviated as SQFT, square foot pricing multiplies the width of the piece or roll of mesh by the width of the piece or the roll.
Q: Is shipping included in the price?
- A: Unless otherwise stated, pricing does not include shipping costs. As a rule, when pricing is provided, delivery is considered FOB Origin.
Q:What is your terms of payment?
- A:TT (telegraphic transfer), PayPal, Western Union, L/C, etc.
Q. How do you ship the goods and how long does it take to arrive?
- A: According to your quantity,we use DHL.FEDEX/ UPS or sea shipping, by express shipping usually take 5-7days to arrive .about 30 days for sea shipping.
Q. How to proceed an order for the products?
- A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
