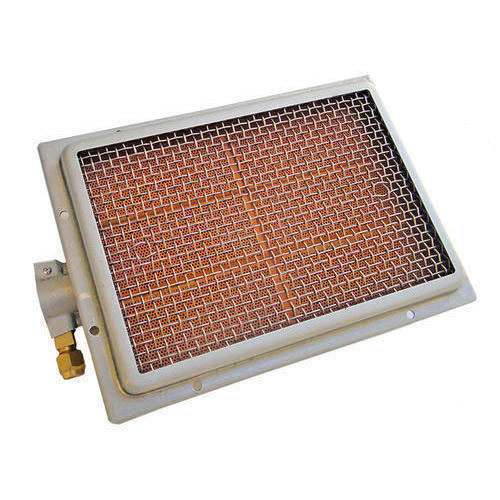

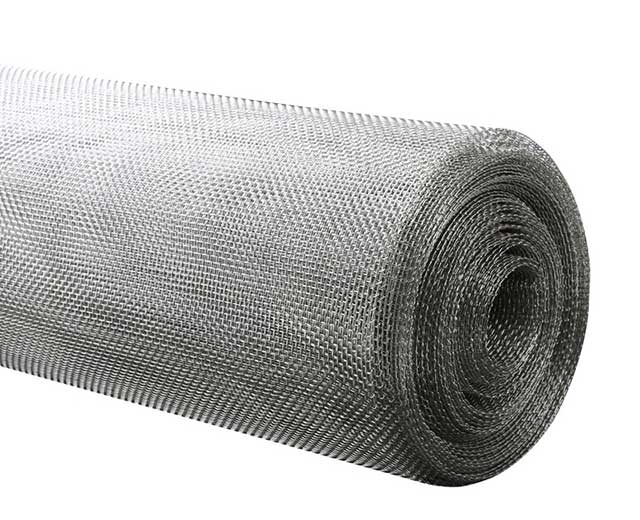

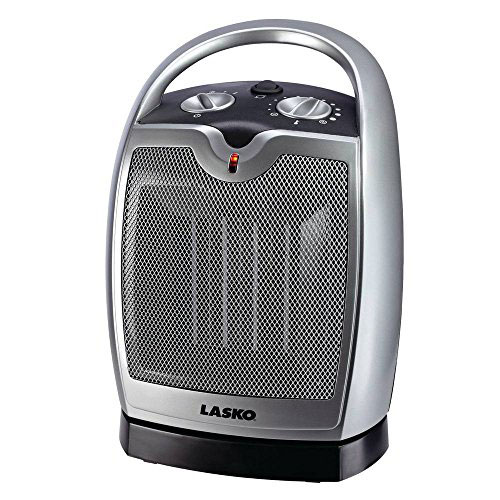

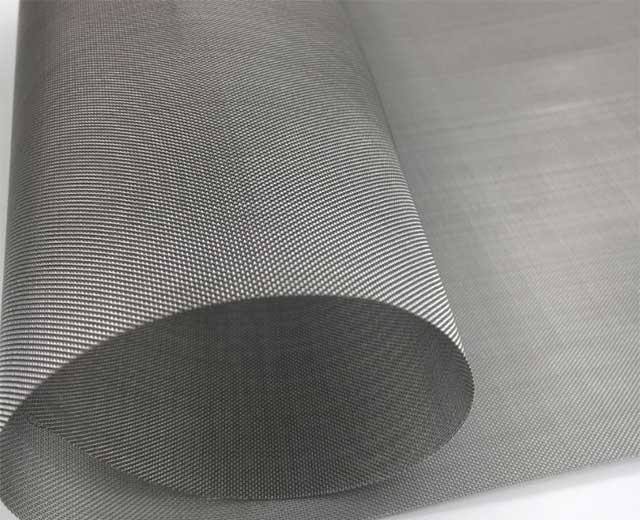

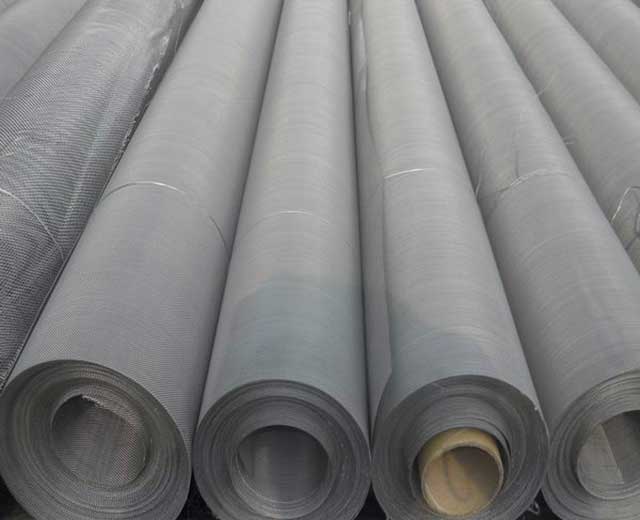

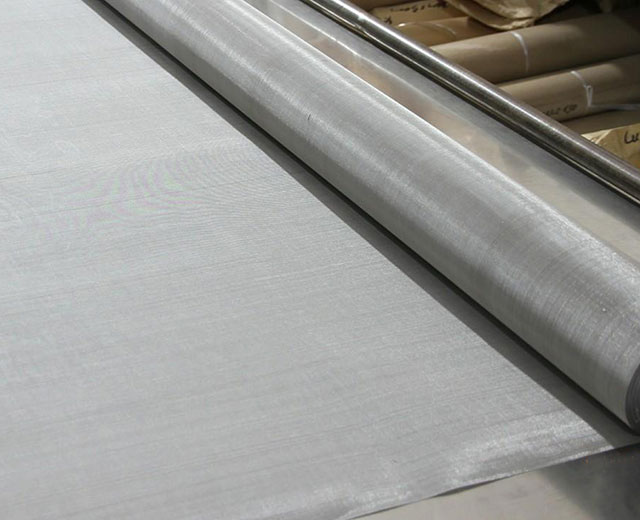

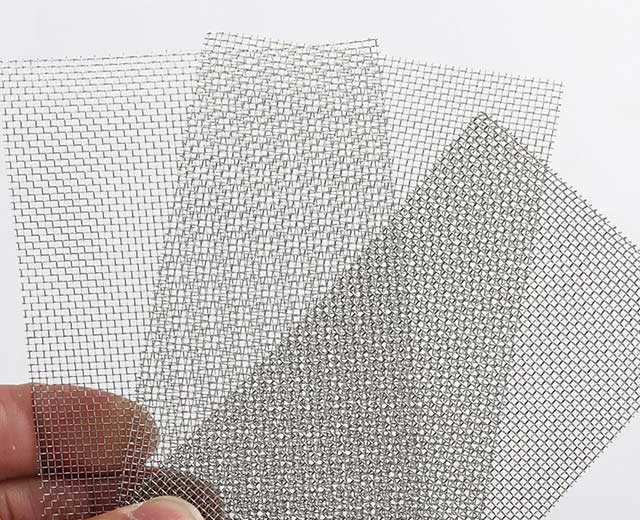

FeCrAl wire mesh is also called FeCrAl alloy woven wire, heating resistance alloy woven wire, electro thermal alloy mesh. The raw material is woven into a continuous meshes. FeCrAl wire mesh has outstanding heating resistance, oxidation resistance performance. It is mainly used in the industry electric furnace, household appliances. It is an ideal material for heating and drying.
main chemical composition (%) |
1Cr13AL4 | 1Cr21AL4 | 0Cr21AL6 | 0Cr23AL5 | 0Cr25AL5 | 0Cr21AL6Nb | 0Cr27AL7Mo2 |
Cr | 12.0-15.0 | 17.0-21.0 | 19.0-22.0 | 20.0-23.5 | 23.0-26.0 | 21.0-23.0 | 26.5-27.8 |
AI | 4.0-6.0 | 2.0-4.0 | 5.0-7.0 | 4.2-5.3 | 4.5-6.5 | 5.0-7.0 | 6.0-7.0 |
Fe | remains | remains | remains | remains | remains | remains | remains |
Re | right amount | right amount | right amount | right amount | right amount | right amount | right amount |
nb:0.5 |
nb:0.5 |
Mesh | Wire Gauge | Aperture (mm) | Wire Diameter (mm) | Roll Width (m) | Weight (kg/m2) |
8 (T) | 21 | 2.375 | 0.8 | 1 | 2.5 |
8 (T) | 22 | 2.475 | 0.7 | 1 | 1.84 |
10 (T) | 23 | 1.94 | 0.6 | 0.6 | 1.69 |
12 (T) | 24 | 1.557 | 0.559 | 1 | 1.8 |
17 (T) | 24 | 0.94 | 0.55 | 0.6 | 2.57 |
20 (P) | 33 | 1.02 | 0.25 | 1 | 0.587 |
20 (P) | 32 | 1 | 0.27 | 1 | 0.685 |
20 (P) | 30 | 0.97 | 0.3 | 1 | 0.846 |
25 (P) | 30 | 0.71 | 0.3 | 1 | 1.125 |
30 (P) | 38 | 0.69 | 0.15 | 1 | 0.3 |
34 (P) | 33 | 0.49 | 0.25 | 1 | 1.06 |
40 (P) | 35 | 0.425 | 0.21 | 1 | 0.83 |
40 (T) | 35 | 0.425 | 0.21 | 1 | 0.83 |
44 (T) | 35 | 0.367 | 0.21 | 1 | 0.88 |
60 (T) | 38 | 0.273 | 0.15 | 1 | 0.66 |
80 (P) | 43 | 0.227 | 0.09 | 1 | 0.324 |
Note:Special size and specifications can be made according to customers requires. |
Material | 1Cr13Al4, 1Cr12Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2. |
Mesh size | 8 mesh - 200 mesh |
Wire diameter | 21G - 43G |
Weaving type | plain weave and twill weave |
Max working temperature |
1Cr13Al4 - 950 degree. 1Cr21Al4 - 1100 degree. 0Cr21Al6 - 1250 degree. 0Cr23Al5 - 1250 degree. 0Cr25Al5 - 1250 degree. 0Cr21Al6Nb - 1350 degree. 0Cr27Al7Mo2 - 1400 degree. |
1.Excellent heat resistance
2.Prevents oxidation and sulfur based corrosion
3.Anti-carburization
4.Large surface load bearing
5.High strength and durable
6.Low temperature coefficient of resistance
