Introduction:

Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.

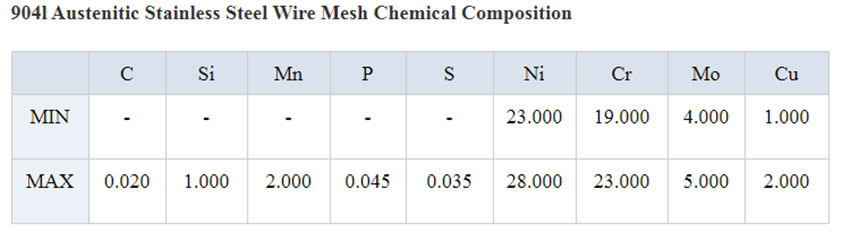

Composition:

Specification

Specifications of plain weave or twill weave stainless steel wire mesh.











Specification sheet of the plain dutch weave woven wire cloth.

Mesh/Inch Absolute micron retention (μm) Weight (kg/m2) Cloth Thickness (mm)
80 × 300 32 - 36 0.98 0.25
80 × 400 36 - 45 0.82 0.23
50 × 250 56 - 63 1 0.32
50 × 280 71 - 75 1 0.32
40 × 200 75 - 80 1.3 0.4
30 × 150 80 - 100 1 0.5
24 × 110 100 - 112 2.5 0.76
22 × 140 140 - 170 2.1 0.66
20 × 150 160 - 180 1.55 0.5
20 × 150 170 - 190 1.6 0.55
18 × 100 200 - 210 2.05 0.69
14 × 110 220 - 240 2.15 0.72
12 × 95 240 - 260 2.3 0.79
14 × 88 280 - 300 3.15 0.76
10 × 90 270 - 290 2.5 0.93
12 × 64 280 - 300 4.1 1.21
10 × 70 315 - 335 3 1.04
8 × 85 330 - 350 2.5 0.93

Specification of the twill dutch weave stainless steel wire cloth.

Mesh/Inch Absolute micron retention (μm) Weight (kg/m2) Cloth Thickness (mm)
510 × 3600 4 - 5 0.3 0.06
400 × 2800 5 - 6 0.36 0.06
375 × 2300 6 - 7 0.39 0.08
325 × 2300 7 - 8 0.47 0.09
260 × 1550 8 - 10 0.68 0.12
250 × 1400 11 - 12 0.68 0.12
200 × 1400 11- 13 0.75 0.14
130 × 700 13 - 15 1.6 0.28
200 × 1120 15 - 17 0.95 0.16
165 × 1400 15 - 18 0.7 0.15
165 × 1100 20 - 21 0.9 0.16
80 × 700 34 - 36 1.2 0.26
40 × 560 71 - 80 1.7 0.39
30 × 360 95 - 106 2.6 0.54
30 × 250 100 - 112 3.2 0.65
20 × 260 110 - 120 3.1 0.67
28 × 560 106 - 112 1.95 0.46
24 × 300 112 - 118 2.85 0.63

Specification of the Reverse Dutch Weave Stainless Steel Wire Mesh

Stainless Steel Automatic Belt Type Fitter Saeen
Mesh count Wire dia.(mm) Mesh thickness(mm)
warp weft warp weft
72 15 0.45 0.55 1.75
120 15 0.35 0.45 1.25
132 17 0.32 0.45 1.20
150 17 0.30 0.45 1 20
152 24 0.27 0.40 1.05
152 30 0.25 0.30 1.00
170 17 0.27 0.45 1.17
260 40 0.15 0.25 0.65
Note: Special size and specifications can be made according to customers requires.

Feature

 1.Corrosion resistance.
 2.Anti-acid and alkali
 3.Good filter performance.
