Introduction:

410/430 steel wire mesh is mainly used in manufacturing parts which are resistant to air,steam,water and oxidizing acid corrosion. 410/430  steel wire mesh also can be used for industrial filtering, food industry filtering, sugar industry filtering etc.

Composition:

  C Si Mn P S Ni Cr
SUS410 ≦0.15% ≦1.00% ≦1.00% ≦0.03% ≦0.04% ≦0.60% ≦11.50-13.50%
SUS430 ≦0.12% ≦0.75% ≦1.00% ≦0.04% ≦0.03% ≦0.60% ≦16.00-18.00%

Specification

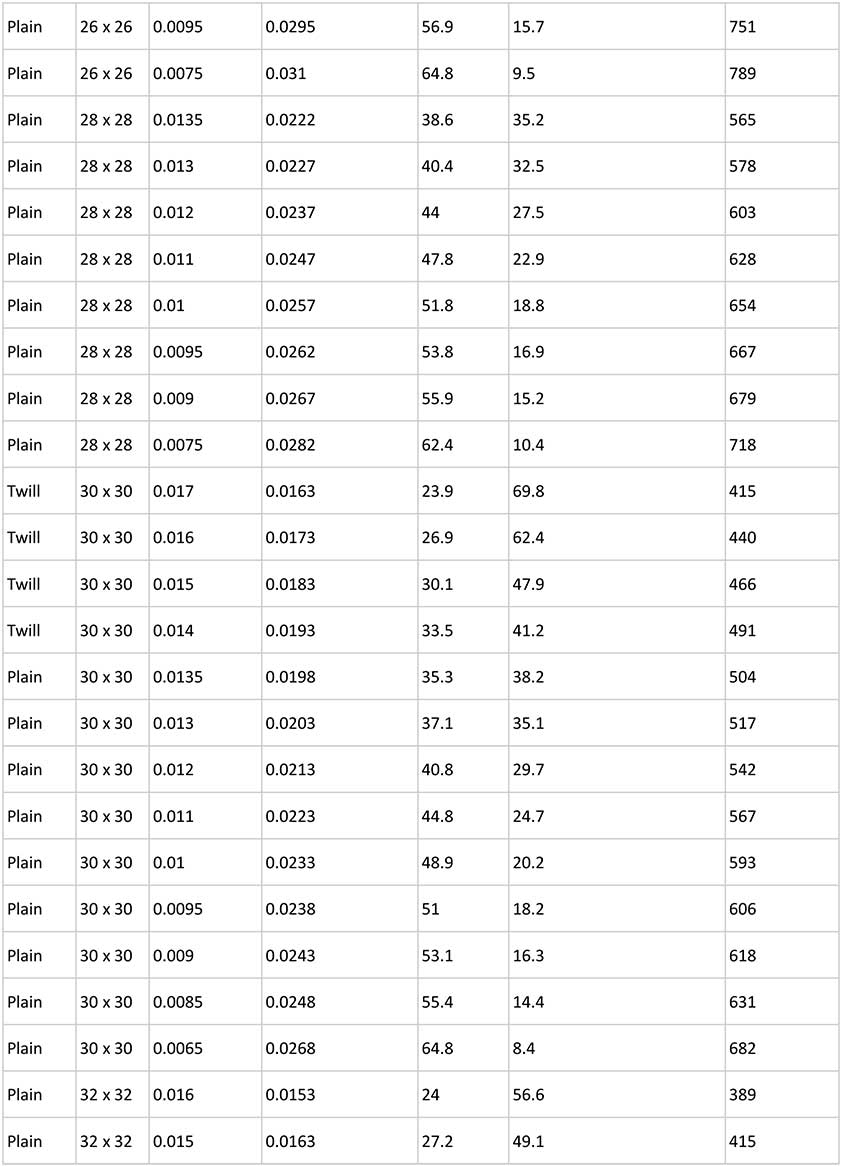

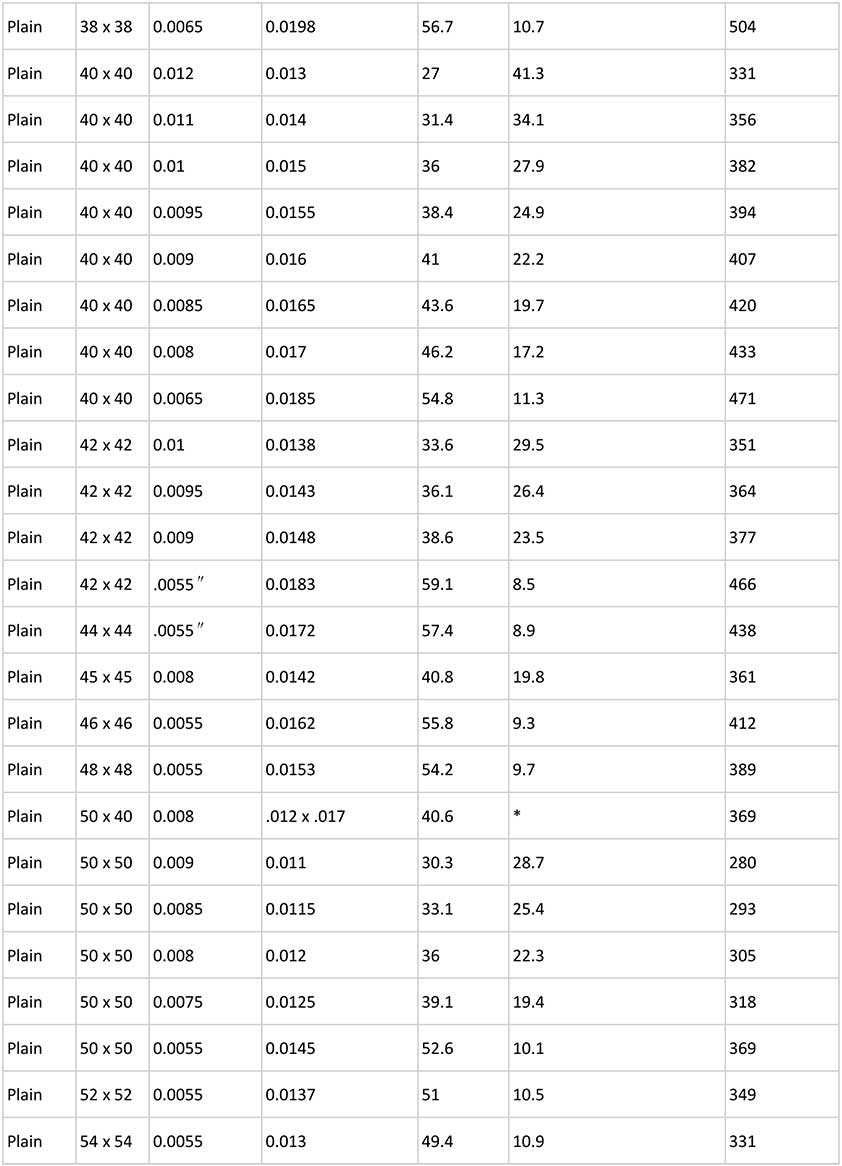

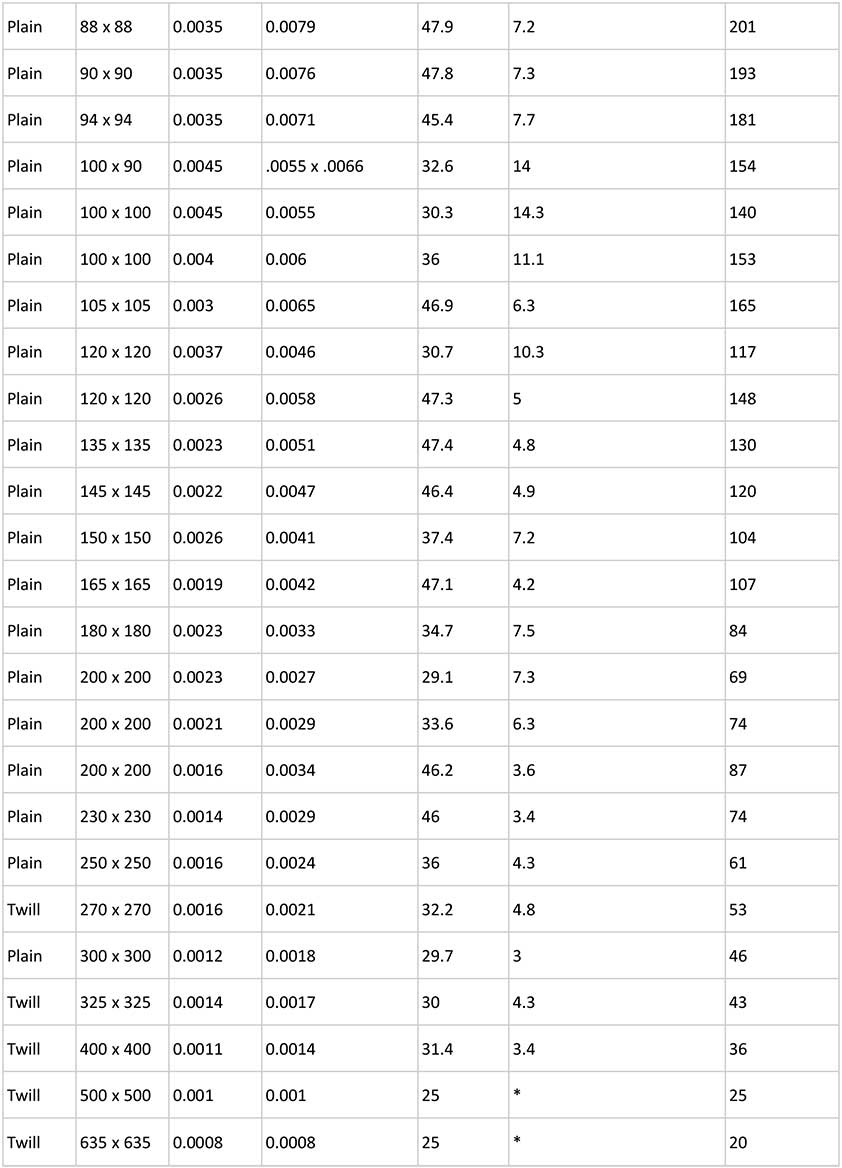

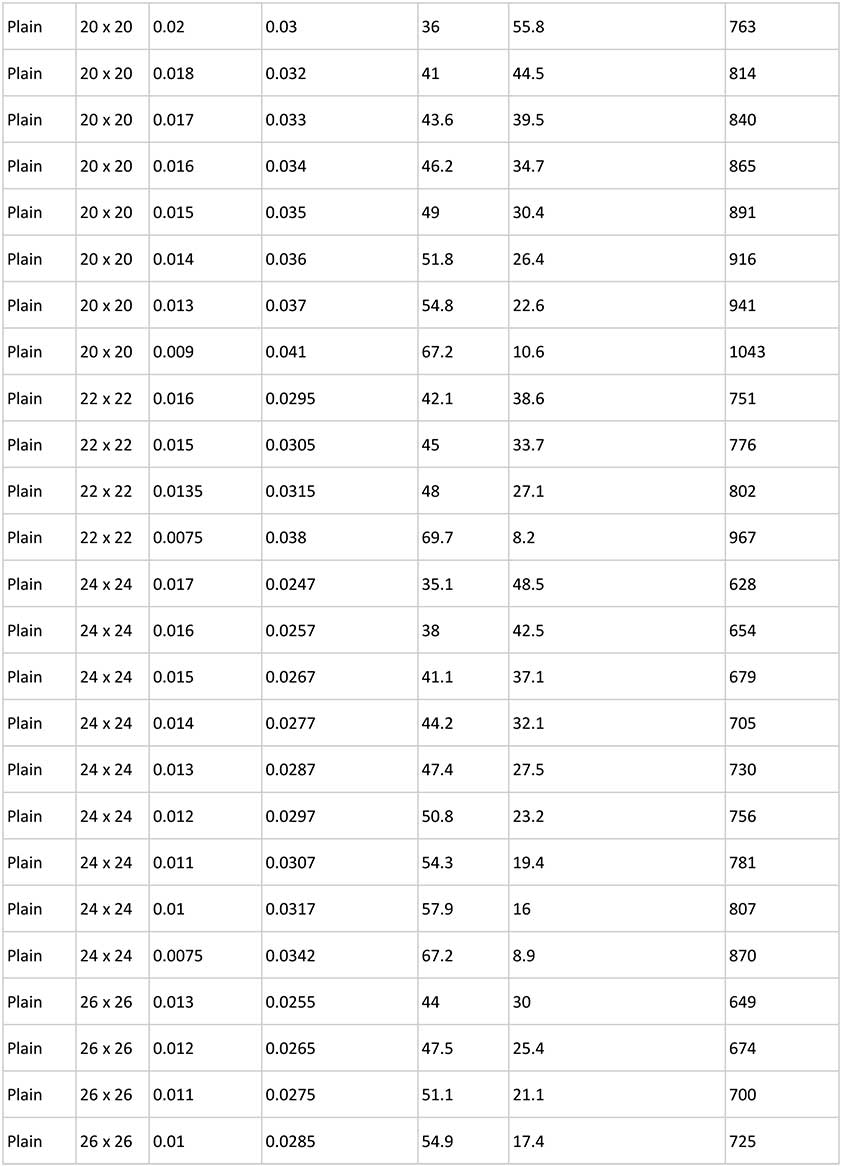

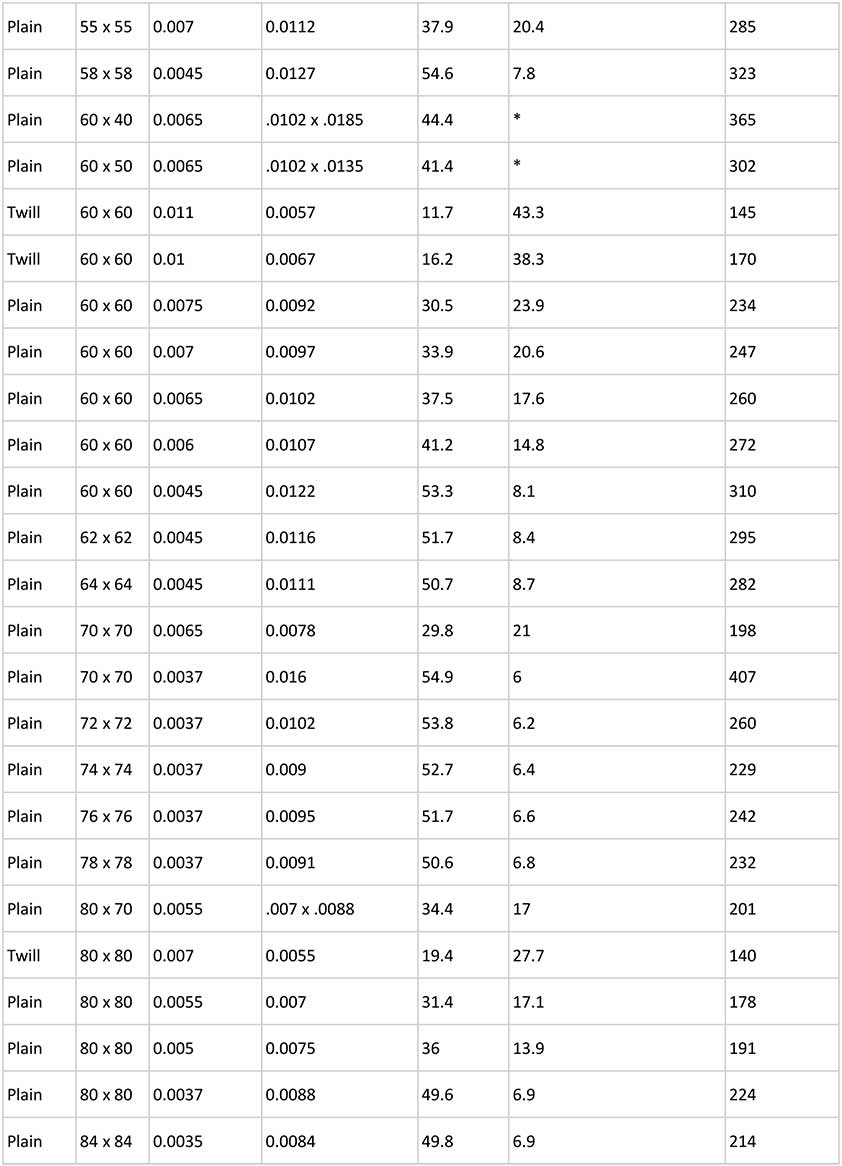

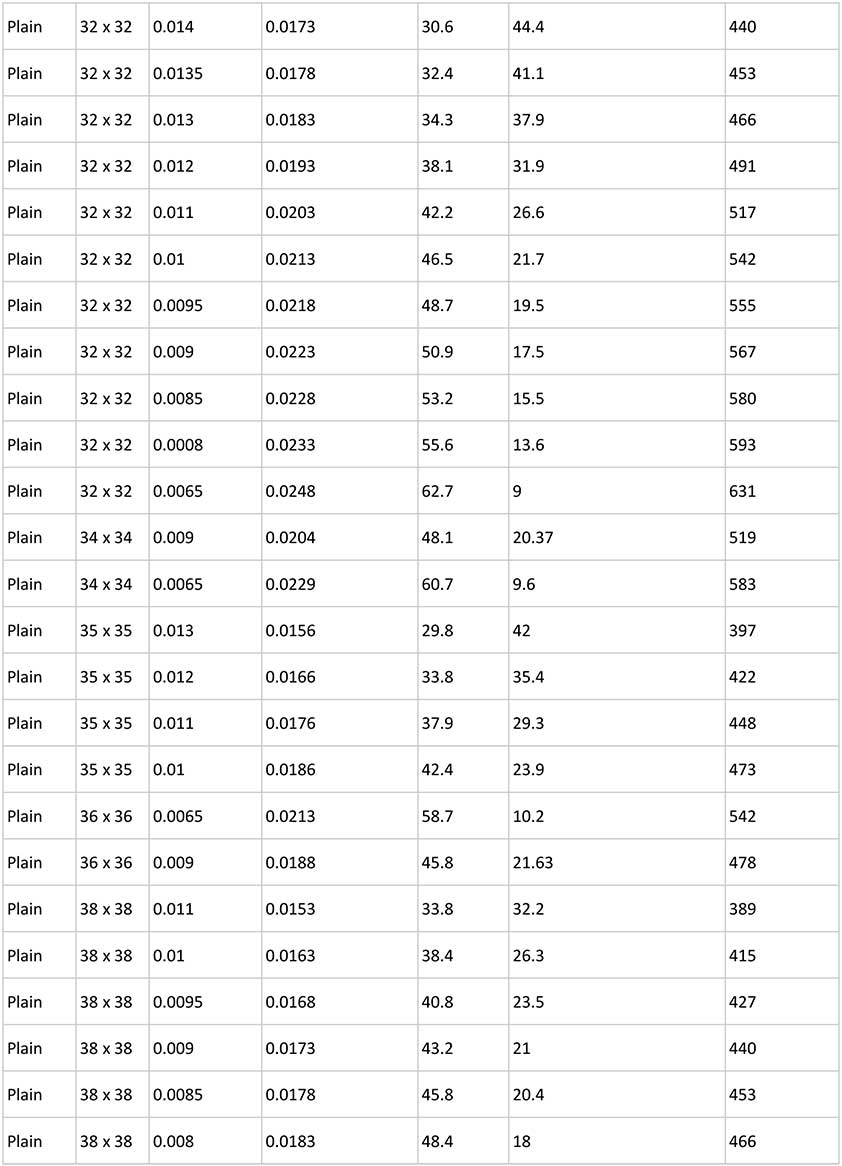

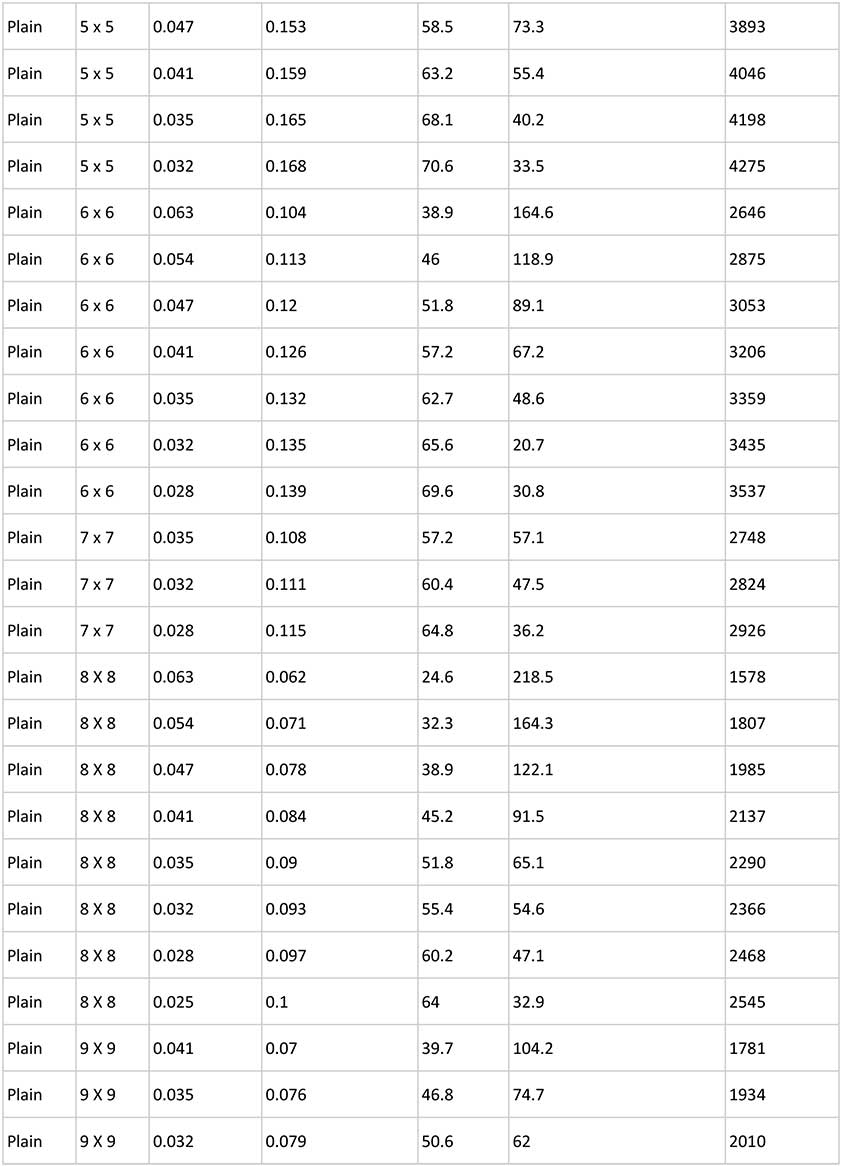

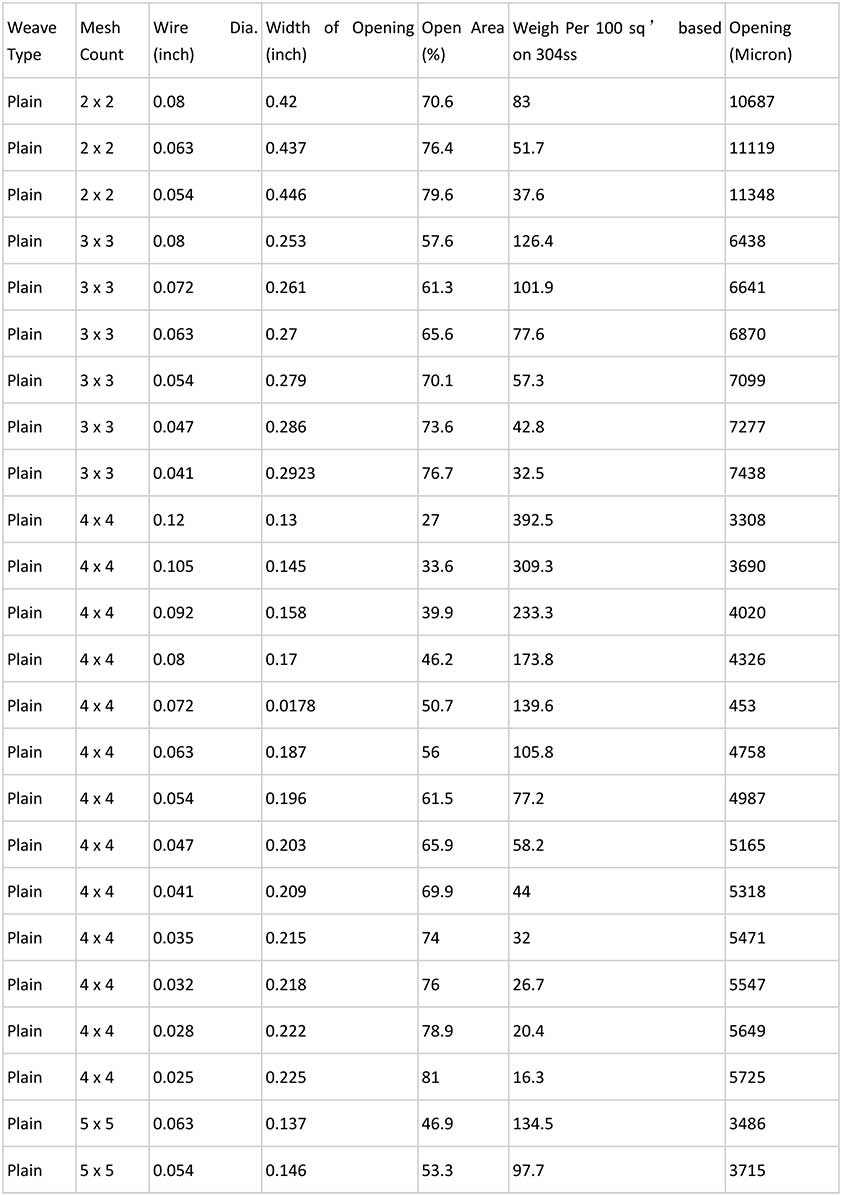

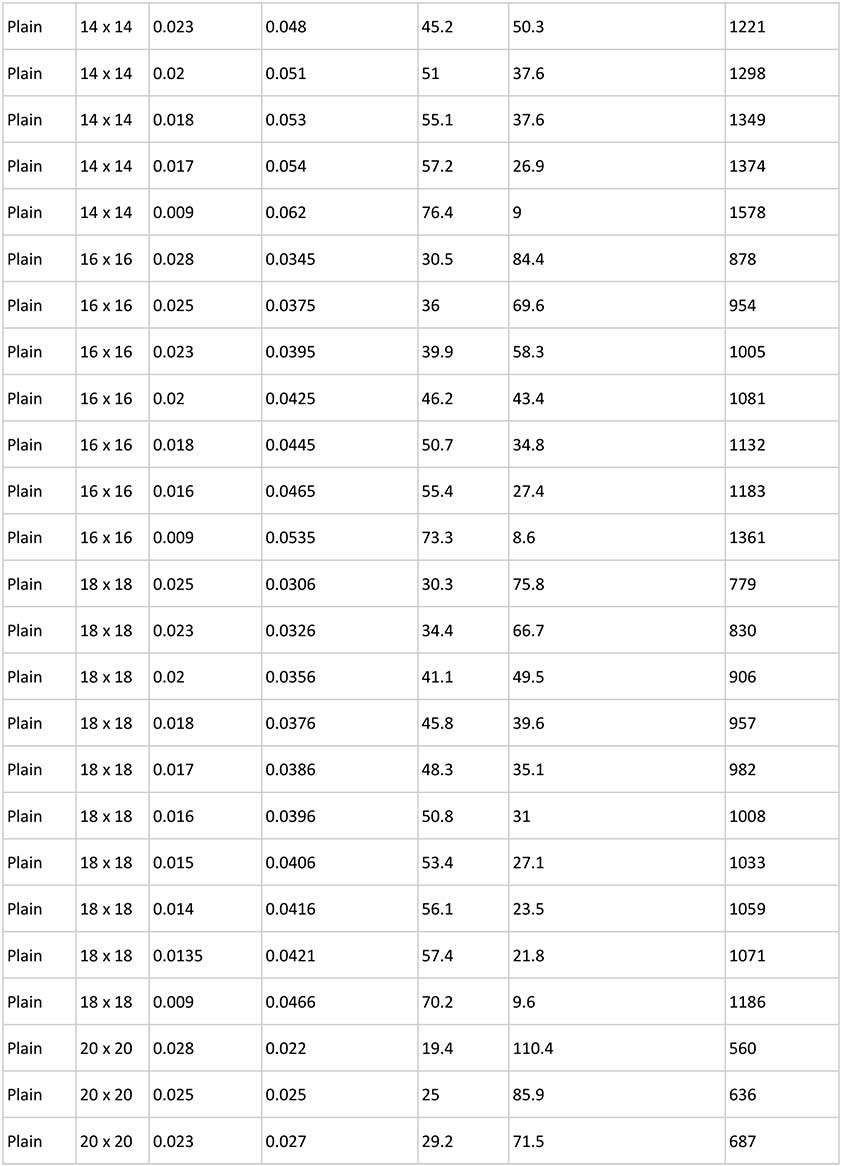

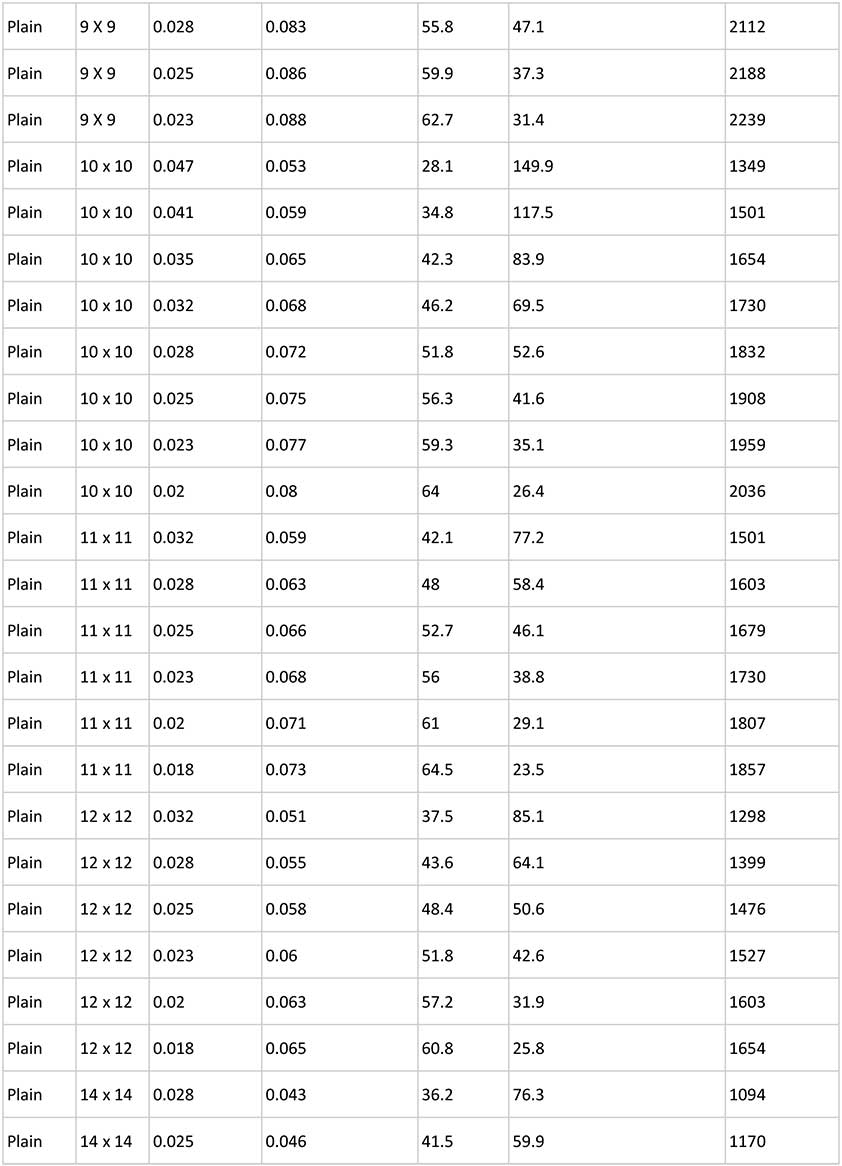

Specifications of plain weave or twill weave stainless steel wire mesh.











Specification sheet of the plain dutch weave woven wire cloth.

Mesh/Inch Absolute micron retention (μm) Weight (kg/m2) Cloth Thickness (mm)
80 × 300 32 - 36 0.98 0.25
80 × 400 36 - 45 0.82 0.23
50 × 250 56 - 63 1 0.32
50 × 280 71 - 75 1 0.32
40 × 200 75 - 80 1.3 0.4
30 × 150 80 - 100 1 0.5
24 × 110 100 - 112 2.5 0.76
22 × 140 140 - 170 2.1 0.66
20 × 150 160 - 180 1.55 0.5
20 × 150 170 - 190 1.6 0.55
18 × 100 200 - 210 2.05 0.69
14 × 110 220 - 240 2.15 0.72
12 × 95 240 - 260 2.3 0.79
14 × 88 280 - 300 3.15 0.76
10 × 90 270 - 290 2.5 0.93
12 × 64 280 - 300 4.1 1.21
10 × 70 315 - 335 3 1.04
8 × 85 330 - 350 2.5 0.93

Specification of the twill dutch weave stainless steel wire cloth.

Mesh/Inch Absolute micron retention (μm) Weight (kg/m2) Cloth Thickness (mm)
510 × 3600 4 - 5 0.3 0.06
400 × 2800 5 - 6 0.36 0.06
375 × 2300 6 - 7 0.39 0.08
325 × 2300 7 - 8 0.47 0.09
260 × 1550 8 - 10 0.68 0.12
250 × 1400 11 - 12 0.68 0.12
200 × 1400 11- 13 0.75 0.14
130 × 700 13 - 15 1.6 0.28
200 × 1120 15 - 17 0.95 0.16
165 × 1400 15 - 18 0.7 0.15
165 × 1100 20 - 21 0.9 0.16
80 × 700 34 - 36 1.2 0.26
40 × 560 71 - 80 1.7 0.39
30 × 360 95 - 106 2.6 0.54
30 × 250 100 - 112 3.2 0.65
20 × 260 110 - 120 3.1 0.67
28 × 560 106 - 112 1.95 0.46
24 × 300 112 - 118 2.85 0.63

Specification of the Reverse Dutch Weave Stainless Steel Wire Mesh

Stainless Steel Automatic Belt Type Fitter Saeen
Mesh count Wire dia.(mm) Mesh thickness(mm)
warp weft warp weft
72 15 0.45 0.55 1.75
120 15 0.35 0.45 1.25
132 17 0.32 0.45 1.20
150 17 0.30 0.45 1 20
152 24 0.27 0.40 1.05
152 30 0.25 0.30 1.00
170 17 0.27 0.45 1.17
260 40 0.15 0.25 0.65
Note: Special size and specifications can be made according to customers requires.

Feature

Magnetic and of good corrosion resistance
Good resistance to stress corrosion and oxidation
Good thermal conductive performance than austenitic stainless steel series. Its thermal expansion coefficient is smaller than austenitic.
Resistance to thermal fatigue, add the stable element titanium, mechanical performance of welded parts is good.
Safe and non-toxic, the sanitary safety level is the same as  304 stainless steel, and the price of 304 stainless steel is higher.
