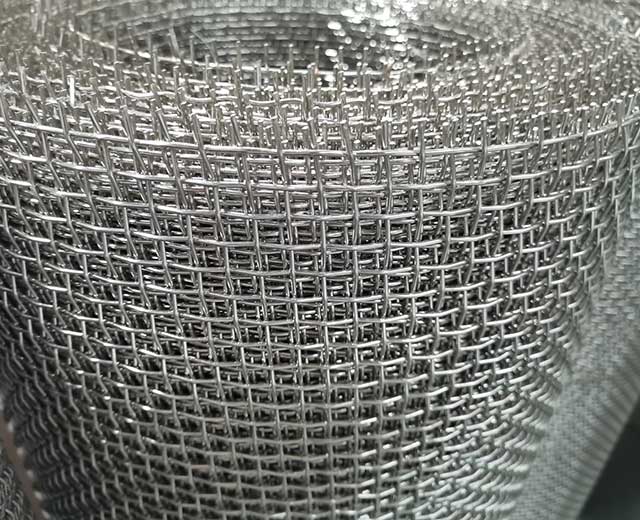

310S stainless steel wire mesh

310S stainless steel wire mesh 310S stainless steel wire mesh 310S stainless steel wire mesh 310S stainless steel wire mesh 310S stainless steel wire mesh 310S stainless steel wire mesh
310S stainless steel wire mesh 310S stainless steel wire mesh 310S stainless steel wire mesh 310S stainless steel wire mesh 310S stainless steel wire mesh 310S stainless steel wire mesh


Introduction:

310S stainless steel also called 0Cr25Ni20. 310S stainless steel(2520), due to high content of Ni and Cr, it is with good oxidation resistance, corrosion resistance, acid and alkali resistance, high temperature resistance. 310S stainless steel the highest temperature is 1200℃, the continuous utilization temperature is 1150℃. 310S stainless steel suitable for making all kinds of exhaust pipe, heat treatment furnace, heat ex-changer, incinerator and other steel which requires heat resistance, high heat/high temperature contact parts.

Composition:

  C Si Mn P S Ni Cr
MIN - - - - - 19.0 24.0
MAX 0.25 1.50 2.00 0.045 0.003 22.0 26.0

Specification

Specifications of plain weave or twill weave stainless steel wire mesh.











Specification sheet of the plain dutch weave woven wire cloth.

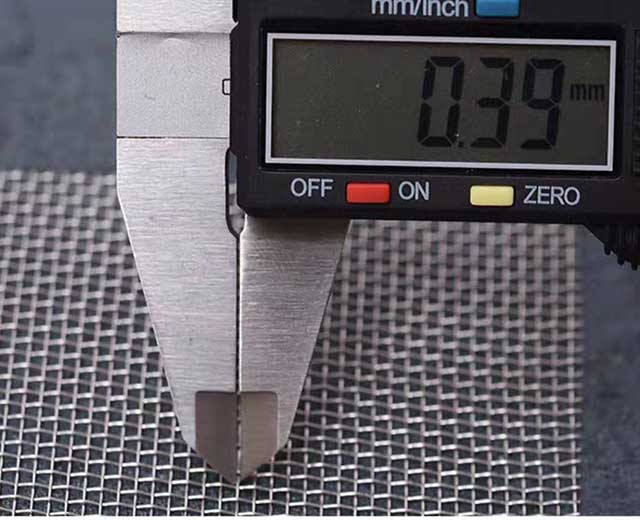

Mesh/Inch Absolute micron retention (μm) Weight (kg/m2) Cloth Thickness (mm)
80 × 300 32 - 36 0.98 0.25
80 × 400 36 - 45 0.82 0.23
50 × 250 56 - 63 1 0.32
50 × 280 71 - 75 1 0.32
40 × 200 75 - 80 1.3 0.4
30 × 150 80 - 100 1 0.5
24 × 110 100 - 112 2.5 0.76
22 × 140 140 - 170 2.1 0.66
20 × 150 160 - 180 1.55 0.5
20 × 150 170 - 190 1.6 0.55
18 × 100 200 - 210 2.05 0.69
14 × 110 220 - 240 2.15 0.72
12 × 95 240 - 260 2.3 0.79
14 × 88 280 - 300 3.15 0.76
10 × 90 270 - 290 2.5 0.93
12 × 64 280 - 300 4.1 1.21
10 × 70 315 - 335 3 1.04
8 × 85 330 - 350 2.5 0.93

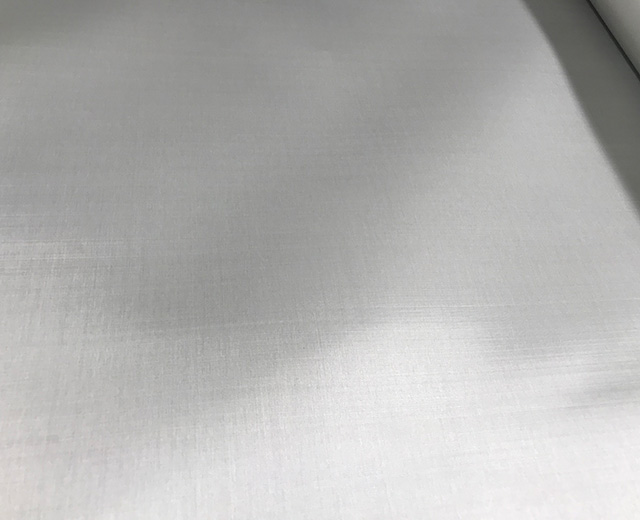

Specification of the twill dutch weave stainless steel wire cloth.

Mesh/Inch Absolute micron retention (μm) Weight (kg/m2) Cloth Thickness (mm)
510 × 3600 4 - 5 0.3 0.06
400 × 2800 5 - 6 0.36 0.06
375 × 2300 6 - 7 0.39 0.08
325 × 2300 7 - 8 0.47 0.09
260 × 1550 8 - 10 0.68 0.12
250 × 1400 11 - 12 0.68 0.12
200 × 1400 11- 13 0.75 0.14
130 × 700 13 - 15 1.6 0.28
200 × 1120 15 - 17 0.95 0.16
165 × 1400 15 - 18 0.7 0.15
165 × 1100 20 - 21 0.9 0.16
80 × 700 34 - 36 1.2 0.26
40 × 560 71 - 80 1.7 0.39
30 × 360 95 - 106 2.6 0.54
30 × 250 100 - 112 3.2 0.65
20 × 260 110 - 120 3.1 0.67
28 × 560 106 - 112 1.95 0.46
24 × 300 112 - 118 2.85 0.63

Specification of the Reverse Dutch Weave Stainless Steel Wire Mesh

Stainless Steel Automatic Belt Type Fitter Saeen
Mesh count Wire dia.(mm) Mesh thickness(mm)
warp weft warp weft
72 15 0.45 0.55 1.75
120 15 0.35 0.45 1.25
132 17 0.32 0.45 1.20
150 17 0.30 0.45 1 20
152 24 0.27 0.40 1.05
152 30 0.25 0.30 1.00
170 17 0.27 0.45 1.17
260 40 0.15 0.25 0.65
Note: Special size and specifications can be made according to customers requires.

Feature

（1）High temperature resistance
（2）oxidation resistance
（3）corrosion resistance
